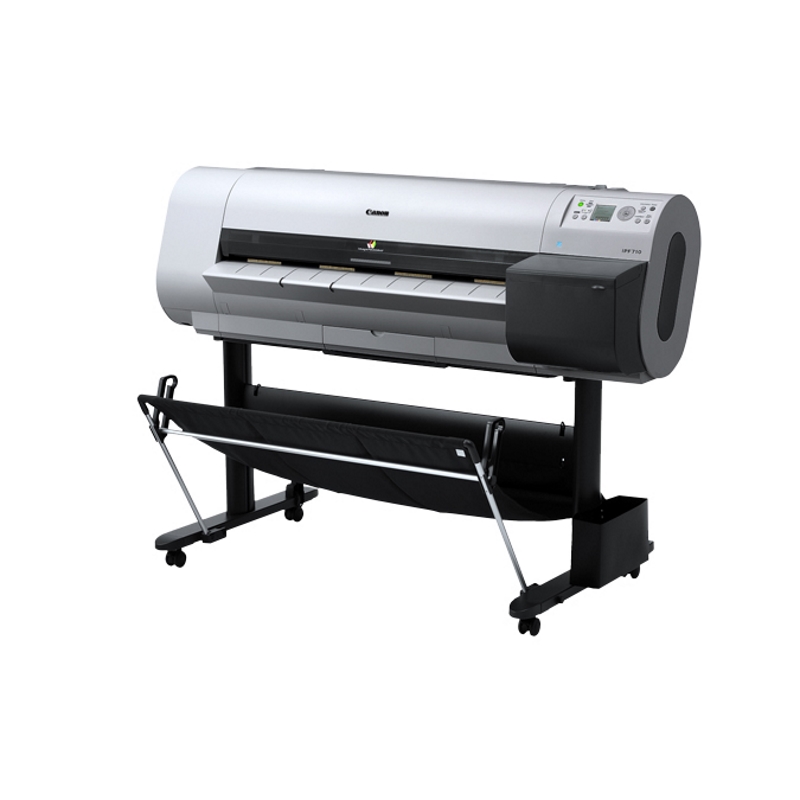

Canon imagePROGRAF iPF710 36-inch Large Format Printer

Product Number: ipf710

SKU: ipf710

In Stock

Canon imagePROGRAF iPF710 Brochure

Click on Image to Enlarge

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

The Canon IPF710 is the entry-level 36-inch plotter from Canon. This Canon plotter has all of the same speed and print quality features as its bigger brothers, the Canon IPF 750 plotter printer and Canon IPF 755 plotter, but it is not designed for heavy everyday use. If you are looking for an entry-level machine and want a robust print solution that can handle the volume of 1 - 100 prints per month (and last for 10 years), then the Canon IPF 710 printer is likely the machine for you!

Please contact us via phone, live chat, or email with any questions regarding the differences between Canon and HP plotter models for a more professional opinion.

Canon imagePROGRAF iPF710 36" Printer Specifications
Printer Type	5-Color 36-inch Printer
Number of Nozzles	Total: 30,720 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch	1,200 dpi
Nozzle Recovery System	Non-firing nozzle detection and compensation
Print Resolution (Up to)	2,400 x 1,200 dpi (Max)
OS Compatibility	Windows®(2000/XP/Vista 32/64bit) MAC(OS9,OS10)¹
Standard Interfaces	USB 2.0 High-Speed 10/100 Base-T/TX Optional: IEEE 1394 (Firewire®)
Ink Droplet Size	4 picoliter
Ink Capacity	130ml per color²
Ink Droplet Size	Dye/Pigment Reactive Ink
Color Set	Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black (two channels)
Buffer Ram	256 MB
Hard Drive	N/A
Media Width	Cut Sheet: 8" - 36" Roll: 10" - 36"
Media Thickness	Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil) Roll: 0.07 - 0.8mm (2.8 - 31.4mil)
Maximum Roll Print Length	59 Feet (18 meters)³
Maximum Media Roll Diameter	5.9" (150mm)
Borderless Printing Width	10", 14", 16", B2 (515 mm), B1 (728 mm), A1 (594 mm), A0 (841 mm), 24", 36"
Paper Feed Method	Roll Feed: One Roll, front output Top Loading Manual Feed: One sheet, front output Front Loading Manual Feed: One sheet, front output Cassette: Up to 250 Sheets (Letter, Plain Paper), front output
Languages	GARO (Canon Proprietary), HP-GL/2, HP-RTL
Noise Level Approx	Operation: 52 dB (A) or less Standby: 35dB (A) or less Acoustic Power: 6.6 Bels
Physical Dimensions	43.1" (H) x 59.3" (W) x 34.3" (D)
Weight	Approximately 141.1 lbs with stand
Power Source	AC-100-120V (50-60Hz)
Power Consumption	Maximum: 100W or less Standby 6W or less Power Off: 1W or less (Compliant with Executive Order)
Operating Environment	Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)
User-replaceable items	Print Head (PF-03), Maintenance Cartridge (MC-07), Ink Tanks (PFI-102)
Software Included	Canon Printer Driver, Digital Photo Front-Access, Printer Driver Extra Kit (Free Layout, imageRUNNER Linking Function), HDI Driver for AutoCAD4
