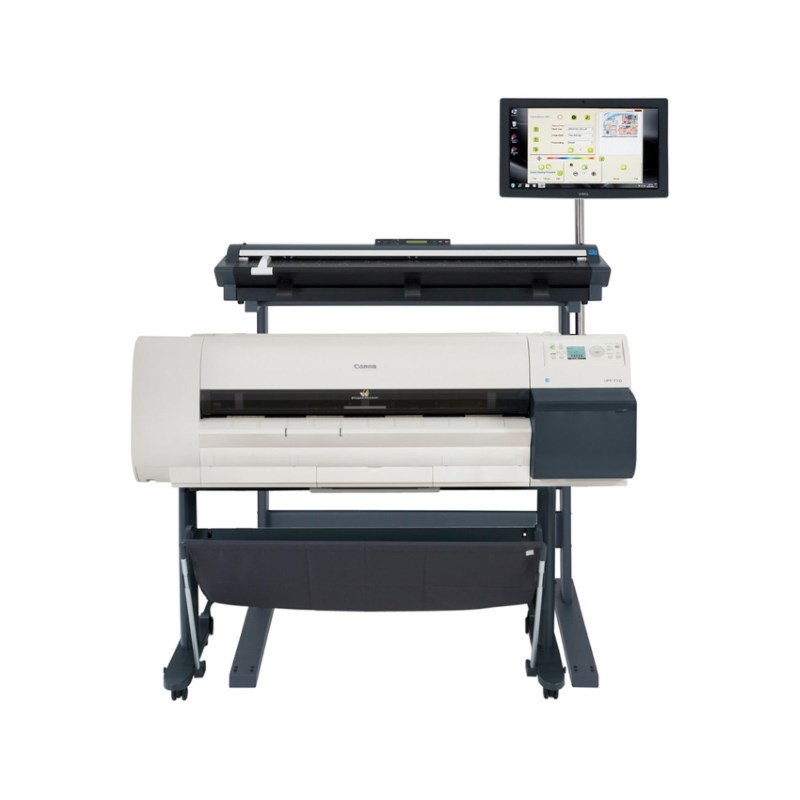

Canon imagePROGRAF iPF710 36-inch Large Format MFP

Product Number: ipf710mfp
SKU: ipf710mfp
In Stock
Canon imagePROGRAF iPF710 MFP + FREE SHIPPING Click on Image to Enlarge

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

Canon iPF710 MFP 36" Multi-Function Plotter/Printer/Copier/Scanner

The 36" Canon imagePROGRAF iPF710 MFP is a powerful scan-to-copy/file/e-mail solution designed to meet the speed and precision requirements for CAD, MCAD, ECAD and GIS applications, with the versatility to handle all office applications.

With true 600dpi optical resolution, CIS scanning technology for incredible line definition and accuracy, and room for documents up to 41" wide (40" image width) by any length*, the Canon iPF710 MFP is a versatile imaging solution. And with dynamic preview and a large, simple-to-use touch-screen interface, one-click scanning/copying has never been easier. Comes standard with the ability to scan to PDF, JPEG and TIFF file formats.



 * Maximum scan length varies depending on scan resolution and hard drive space.


The Canon iPF710 MFP large format printer has on-board support for HP-GL/2 and HP-RTL files, a large LCD panel and operates with a reduced amount of noise, for greater ease of operation and more flexibility in various environments. The Canon iPF710 MFP provides both quality and performance, demanded by today's market. The L-COA controller and the 5-color Reactive Ink system are designed to drive the best quality output at the highest possible speeds. Ideal for architects and engineers, the Canon iPF710 MFP wide format printer is an ideal solution for any professional with a need for creating, processing and printing complex renderings, CAD drawings, GIS maps and other large-format graphics quickly, effortlessly, and with remarkable detail.

View the Canon Plotter Printers Guide
Shop Canon printers online at WAB Paper Supply.

Canon IPF710 MFP 36" Printer/Copier/Scanner


Printing Method

5-Color 36-inch Printer

Number of Nozzles

Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch: 1,200 dpi
Non-firing nozzle detection and compensation

Print Resolution (Up to)

2,400 x 1,200 dpi (Max)

Ink Compatibility

Dye/Pigment Reactive Ink
Ink Capacity: 130ml per color

Ink Droplet Size

4 picoliter


Color Set

Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black



Paper Sizes

Media Width: Cut Sheet: 8" - 36"
Roll: 10" - 36"
Media Thickness: Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil)
Roll: 0.07 - 0.8mm (2.8 - 31.4mil)
Maximum Roll Print Length: 59 Feet (18 meters)2
Maximum Media Roll Diameter: 5.9"

Automatic Sheet Feeder

Top Loading Roll Feed: One Roll, front output
Top Loading Manual Feed: One sheet, front output
Languages: GARO (Canon Proprietary), HP-GL/2, HP RTL


Scanner Type

Contact Image Sensor (CIS) technology

Scanning Element

Scan Accuracy: +/- 0.1%
Speed: 10.1 ips (monochrome)
1.67 ips (color)

Max. Resolutions

Standard Resolution: 600dpi
Adjustable from 100 dpi to 9,600 dpi

Max. Document Size

Width: 41 inch document width (40 inch image width)
Length: 60 inches
Thickness: 0.012in (0.3mm)


OS Compatibility

Printer Driver Operating System:
Windows XP/Server 2003/Server 2008/Vista/7 (32/64bit), Macintosh OSX 10.3.9-10.6 (32 bit), OS X 10.5-10.6 (64 bit)
Standard Interface: USB 2.0 High-Speed
10/100 Base-T/TX
Software Included: PosterArtist Lite (PC Only), Accounting Manager (PC Only), Canon Printer Driver, Digital Photo Front-Access, Printer Driver Extra Kit (Free Layout, imageRUNNER Linking Function), HDI Driver for AutoCAD3Computer Specifications:
Operating System: Windows 7 Professional
Monitor: Flat Panel Touch-Screen Display
Software Included: SmartWorks MFP
