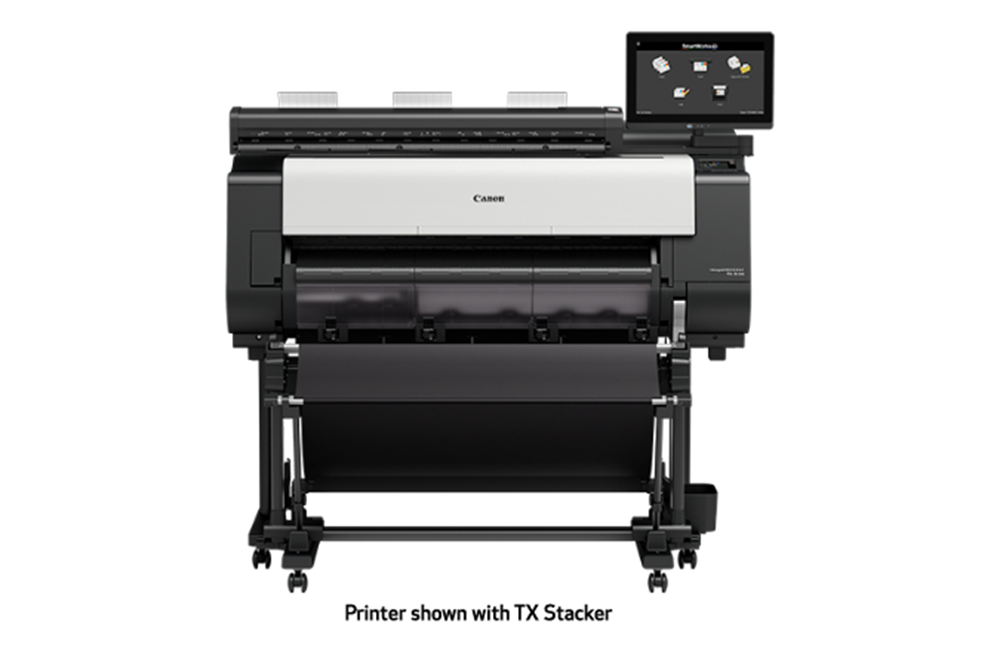

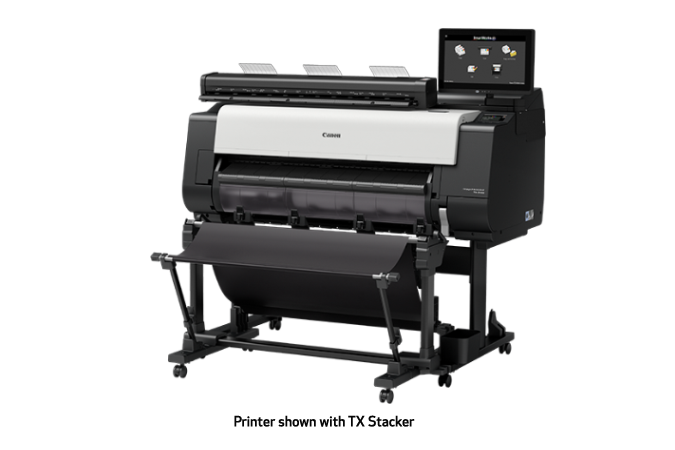

Canon imagePROGRAF TX-3100 MFP Z36 with stacker

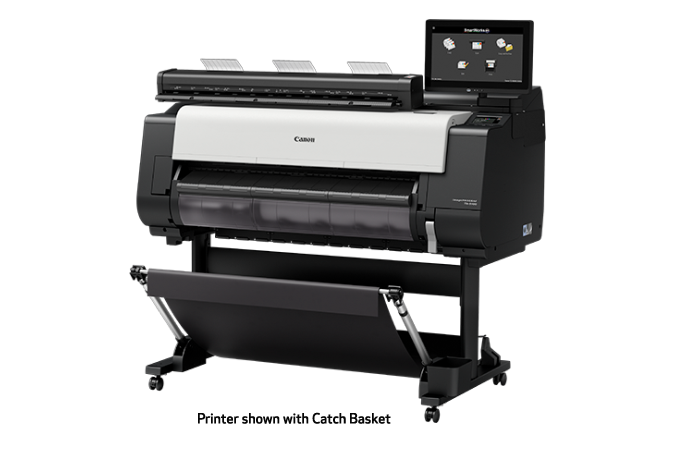

Canon imagePROGRAF TX-3100 MFP Z36 with basket

Click on Image to Enlarge

Canon imagePROGRAF TX-3100 MFP Z36 Large Format Printer 36 inch 5515C003AA

Product Number: 5515C003AA

SKU: TX-3100 MFP Z36

In Stock

Canon imagePROGRAF TX-3100 MFP Z36 Specs Buyer's Guide

Click on Image to Enlarge

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TX-3100 MFP Z36 36-inch Multifunction Printer

The Canon imagePROGRAF TX-3100 MFP Z36 Multifunction Plotter features a production CAD printer and Z36 scanner to optimize output capabilities. Experience efficient batch scanning with intuitive interfaces and scan to PDF, TIFF and JPEG file formats. The Z36 consistently delivers increased color accuracy and detail in shadows and highlights. Manage print and scan jobs with the centralized AIO controller which allows for file sharing, updates user settings with maintenance issues including ink levels and more!

A 5-color, 36” large-format multifunction printer for high-volume workgroups.

High-performance printer designed for CAD, technical drawings, detailed renderings, posters and other documents requiring high-quality output. With an integrated scanner and computer, it has everything you need to copy, scan, archive and share documents.

WAB Paper Supply has the best prices on new Canon iPF printers!

We accept trade-ins for Canon iPF printers. Call 414-321-1422 for details.

Canon imagePROGRAF TX-3100 Multifunction system includes:

TX-3100 36” printer
Z36 Scanner
Automatic roll loading
SmartWorks software
Advanced security features
Available with TX Stacker or Catch Basket

Canon imagePROGRAF TX-3100 MFP Z36 Specs
Main Unit
Printer Type	5-Color, 36-inch Printer Plotter
Number of Nozzles	Total: 15,360 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch	1,200 dpi Non-firing nozzle detection and compensation
Print Resolution (Up to)	2,400 x 1,200 dpi (Max)
OS Compatibility	Windows® 7, 8.1, 10 (32/64bit) Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit) Macintosh® OS 10.12.6 & later
Standard Interfaces	USB 2.0 High-Speed 10/100/1000 Base-T/TX
Ink Droplet Size	5 picoliter
Ink Capacity	160ml, 330ml or 700ml per color
Ink Types	Pigment Ink
Color Set	Pigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer/Ram	128 GB (Virtual) 2 GB (Physical)
Hard Drive	500 GB
Media Width	Cut Sheet: 6" - 36" (203.2mm - 914mm) Roll Feed: 6" - 36" (203.2mm - 914mm)
Media Thickness	0.07 - 0.8 mm (2.8 - 31.4mil)
Maximum Roll Print Length	Roll Feed: 59' (18 meters)
Maximum Media Roll Diameter	6.7" (170mm)
Borderless Printing Width	all sizes
Paper Feed Method	Roll Feed: One Roll, Front-loading, Front Output Manual Feed: One Roll, Front Output
Languages	SGRaster, HPGL/2, HP-RTL, PDF, JPEG
Noise Level Approx	Operation: 51 dB (A) or less Standby: 35 dB (A) or less Acoustic Power: 6.9 Bels or less
Physical Dimensions	46“ x 55“ x 47" (Main unit and TX Stacker; roll holder included, no inks, no print heads) 46“ x 55“ x 39" (Main unit and Catch Basket)
Weight	Approx. 257 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads) Approx. 231 lbs (Main unit and Catch Basket)
Power Source	AC-100-240V (50-60Hz)
Power Consumption	Maximum: 115W or less Standby: 2.0W or less Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment	Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)
User-replaceable items	Print Head: PF-06 Maintenance Cartridge: MC-30 Ink Tanks: PFI-110/PFI-310/PFI-710
Software Available	Accounting Manager Canon Print Service Device Management Console Direct Print Plus Printer Driver Extra Kit Free Layout Plus TX Unified Printer Driver Media Configuration Tool PosterArtist Lite for Windows Optimized Driver for AutoCAD CPP Publisher Select CPP Driver Select

Scanner
Scanner Type	Contact image sensor (CIS) technology
Scan Accuracy	+/-0.1%
Speed	Monochrome: 13 ips Color: 6 ips
Optical Resolutions	1,200 dpi (adjustable from 100 dpi to 2,400 dpi)
Max. Resolutions	9,600 dpi interpolated
Max. Document Size	Width: 38-inch document, 36-inch image
Length	315 (JPG or PDF) 598 (TIFF)
Max. Thickness	0.04in (1mm)
Standard Interfaces	USB 3.0 (PC connector compatible with USB 2.0 & USB 3.0 sockets)
