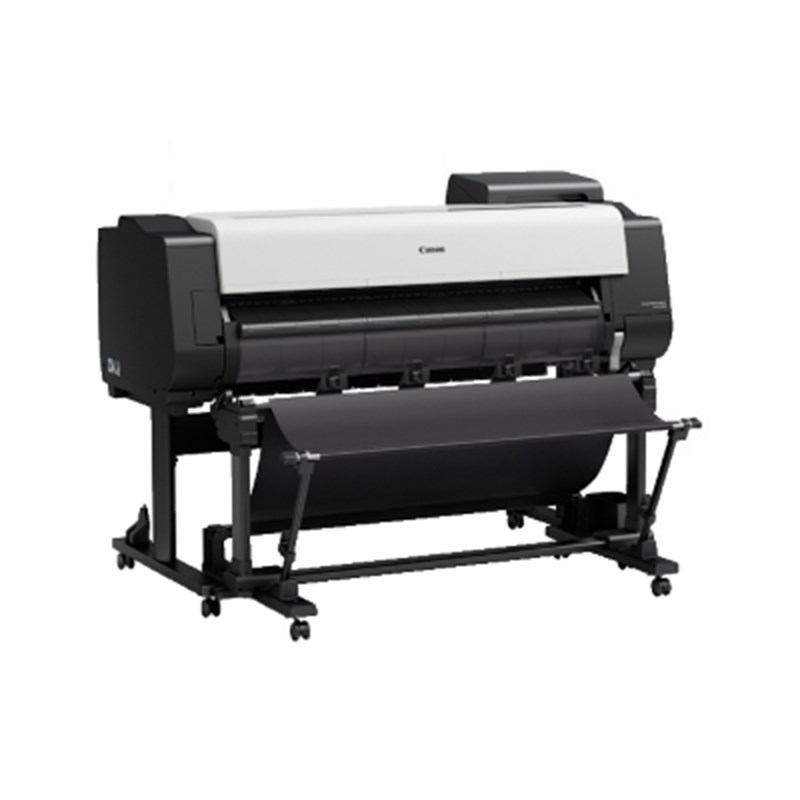

Canon imagePROGRAF TX 4000 44-inch Printer

Product Number: TX-4000
SKU: TX-4000
In Stock
Canon imagePROGRAF TX 4000 44-inch Printer Large Format Click on Image to Enlarge
Canon imagePROGRAF TX 4000 44-inch Printer Large Format canon imageprograf tx4000 plotter printhead

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TX 4000 44-inch Printer

Designed for the aqueous inkjet technical documents market, Canon’s 44-inch imagePROGRAF TX 4000 offers some compelling capabilities for architects, engineers and anyone else in the CAD field—like the ability to print laser sharp 3D sized drawings in as little as a minute, up to 100-sheet stacking capability, wireless printing, automatic roll loading and an optional Multifunction Roll Unit. For optimum print consistency, we recommend Canon media.

A 5-color, 44-inch large format printer for high-volume workgroups.

High-performance aqueous inkjet printer for CAD, detailed maps, technical drawings and other documents requiring high-quality printing.

You won’t find a better price on a new Canon iPF printer anywhere else!

We accept trade-ins for Canon iPF printers. Call 414-321-1422 for details.

Canon imagePROGRAF TX4000 at a glance:

  • Aqueous inkjet
  • Prints 3D sized drawings in a minute
  • Stacks up to 100 sheets
  • Wireless printing capable
  • Automatic roll loading

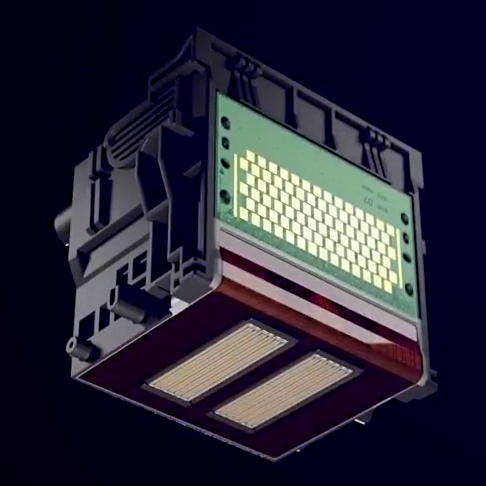

Canon imagePROGRAF TX4000 PF-06 Print Head Makes Short Work of Big Jobs

Canon designed the 6-channel PF-06 Print Head to work with the TX-4000’s high-speed carriage and high-frequency ink ejection. The PF-06 printhead incorporates a nozzle-shaped orifice to minimize mist spray and lay down clean lines and text with outstanding speed. With its 15,360 nozzles, this high precision print head lays down 5 picoliter-size ink droplets for impressively sharp detail. Fine lines are accurate to ±0.10% and as thin as 0.02mm, with consistently accurate prints at 2400 x 1200 dpi output (max.).

Canon imagePROGRAF TX4000 Security Features

Canon equips their TX Series large format printers with security features designed to help protect your confidential information, including:

Secure Communication

  • 802.1x Authentication
  • SNMPv3
  • IPSec

Canon imagePROGRAF TX4000 Functionality Restrictions

  • Panel Lock by Remote UI
  • Remote UI Multilevel
  • Hide IP From Panel
  • Panel Access Control
  • Job Storage

Secure Storage

  • Self-Encrypting Hard Disk
  • Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)

The following functions can be disabled in administrator mode:

  • Direct USB Thumb Drive Printing
  • Internet Connection
  • FTP and Telnet communication protocols
  • Job Log Look-up

Canon imagePROGRAF TX4000 Stacker

Canon’s ingenious TX Stacker lets you stack up to 100 sheets of media in a range of sizes, including ARCH C, ARCH D, or ARCH E/E1 sizes. With a variety of configurations for positioning the TX Stacker for easy access to printouts and a design that allows it to be folded up to conserve space when not in use, you’ll wonder how you ever got along without one.

Canon imagePROGRAF TX4000 LUCIA TD Pigment Ink Set

Canon’s 5-color LUCIA TD pigment ink set was specifically formulated to produce sharper lines and text on both inkjet and non-inkjet media. When used with a water-resistant media, this ink set produces prints capable of withstanding many outdoor environments. The TX-4000 ships with 1,650 ml of ink and this ink set are available in 160 ml, 330 ml, and 700 ml ink tanks.

Canon imagePROGRAF TX4000 Automatic Media Loading

Canon makes loading media unbelievably easy. Just place a roll of media on the roll holder and let the Automatic Media Loading system do the rest. The printer detects the roll and automatically feeds the paper through the printer feeder. No manual feeding required—ever!

View the Canon Plotter Printers Guide.

Shop Canon Plotters online at WAB Paper Supply for all your business printing solutions.

Canon imagePROGRAF TX 4000 44" Printer Specifications:

Printer Type

  • 5-Color, 44-inch Printer Plotter

Number of Nozzles

  • Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

Print Resolution (Up to)

  • 2,400 x 1,200 dpi (Max)

OS Compatibility

  • Windows® 7, 8.1, 10 (32/64bit)
  • Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 160ml, 330ml or 700ml per color

Ink Types

  • Pigment Ink

Color Set

  • Pigment: Matte Black, Black, Cyan, Magenta, Yellow


  • 128 GB (Virtual)
  • 2 GB (Physical)

Hard Drive

  • 500 GB

Media Width

  • Cut Sheet - 8" - 44"
  • Roll Feed - 8" - 44"

Media Thickness

  • 0.07-0.8mm (2.8-31.4mil)
  • Roll: 0.07 - 0.8 mm (2.8 - 31.4mil)

Maximum Roll Print Length

  • Roll Feed - 59' (18 meters)

Maximum Media Roll Diameter

  • 6.7" (170mm)

Borderless Printing Width

  • 8”, 10", 12”, 14", 16” 17", 20”, 24", 30”, 36" B4 (10.12"/257 mm), A3 (11.69"/297 mm), A3+ (12.95"/329 mm), A2 (16.54"/420 mm), B2 (20.28"/515 mm), A1 (23.39"/594 mm), B1 (28.66"/ 728 mm), A0 (33.11"/841 mm), B0 (40.55"/1030 mm)

Paper Feed Method

  • Roll Feed: One Roll, Front-loading, Front Output, Front Loading
  • Manual Feed: One Roll, Front Output


  • SGRaster, HPGL/2, HP-RTL, PDF, JPEG

Noise Level Approx

  • Operation: 51 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 6.9 Bels

Physical Dimensions

  • 46.0“ x 62.7“ x 46.8“ (Main unit and TX Stacker)


  • Approx. 277 lbs (roll holder included, no inks, no print heads)

Power Source

  • AC-100-240V (50-60Hz)

Power Consumption

  • Maximum: 107W or less
  • Standby 3.6W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-replaceable items

  • Print Head (PF-06)
  • Maintenance Cartridge (MC-30)
  • Ink Tanks (PFI-110/PFI-310/PFI-710)

Software Included

  • Accounting Manager
  • Apple AirPrint
  • Canon Print Service
  • Device Management Console
  • Direct Print & Share
  • Free Layout Tool
  • Media Configuration Tool
  • PosterArtist Lite for Windows
  • Printer Driver Extra Kit for Windows/Mac (Free Print Utility Layout, Advanced Preview)
  • Optimized Driver for AutoCAD
  • Print Plug-in for Microsoft® Word/Excel/PowerPoint® for Windows
  • Quick Utility Toolbox
