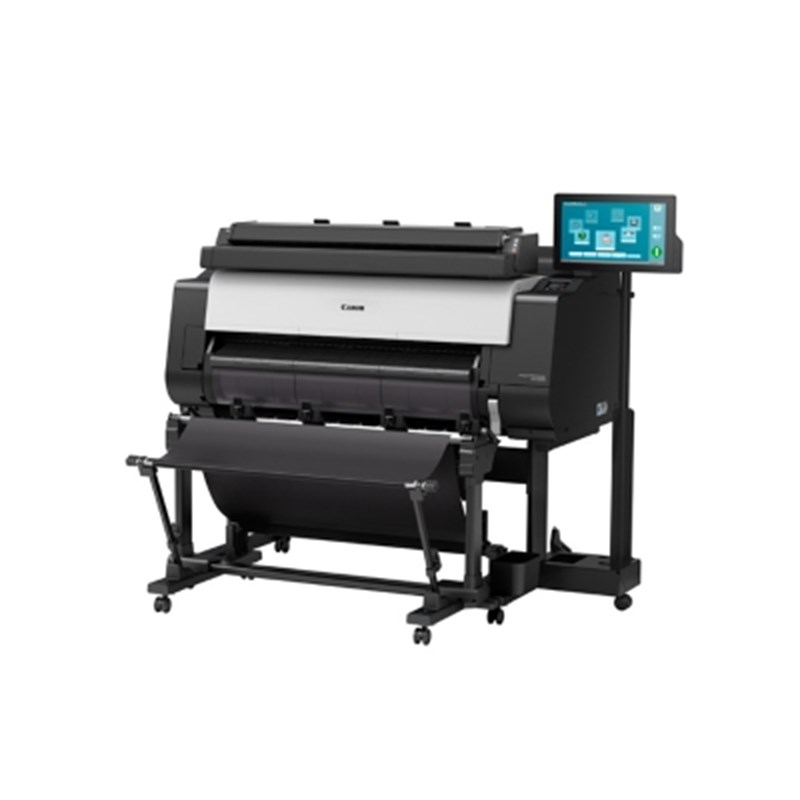

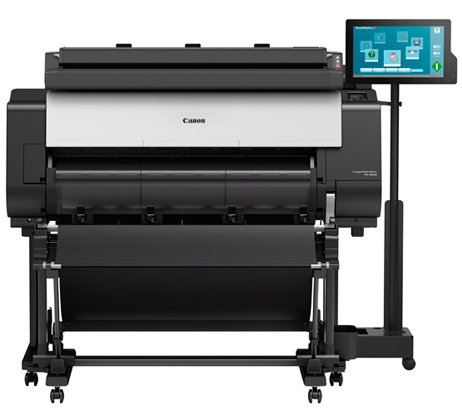

Canon imagePROGRAF TX 3000 MFP T36 36-inch Multifunction Printer

The 36-inch imagePROGRAF TX 3000 MFP T36 multifunction combines an integrated Canon printer, their T36 scanner and All-In-One Computer that can all work independently. Compared to previous models, TX-3000 Multifunction Printer offers increased scan speeds and greater software capability. If you need a printer capable of scanning, archiving and sharing maps, drawings, renderings, posters and other large format pieces, take a look at the TX-3000 MFP.

A 5-color, 36” large format multifunction printer for high-volume workgroups.

High-performance printer designed for CAD, technical drawings, detailed renderings, posters and other documents requiring high-quality output. With an integrated scanner and computer, it has everything you need to copy, scan, archive and share documents.

WAB Paper Supply has the best prices on new Canon iPF printers!

We accept trade-ins for Canon iPF printers. Call 800-321-1974 for details.

Canon TX Smartworks Software Setup

Watch on YouTube

Canon TX Multifunction Printer

Watch on YouTube

Canon imagePROGRAF TX3000 MFP Multifunction system includes:

  • TX-3000 36” printer
  • Canon T36 Scanner
  • 6” All-in-one Touchscreen PC
  • SmartWorks software
  • Computer stand
  • TX Stacker

Canon imagePROGRAF TX 3000 MFP T36 Mulfitunction Printer Specifications:

Printer Type

  • 5-Color, 36-inch Printer Plotter

Number of Nozzles

  • Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

Print Resolution (Up to)

  • 2,400 x 1,200 dpi (Max)

OS Compatibility

  • Windows® 7, 8.1, 10 (32/64bit)
  • Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 160ml, 330ml or 700ml per color

Ink Types

  • Pigment Ink

Color Set

  • Pigment: Matte Black, Black, Cyan, Magenta, Yellow

Buffer/Ram

  • 128 GB (Virtual)
  • 2 GB (Physical)

Hard Drive

  • 500 GB

Media Width

  • Cut Sheet: 8" - 36" (203.2mm - 914mm)
  • Roll Feed: 8" - 36" (203.2mm - 914mm)

Media Thickness

  • Cut Sheet: 0.07-0.8mm (2.8-31.4mil)
  • Roll Feed: 0.07 - 0.8 mm (2.8 - 31.4mil)

Maximum Roll Print Length

  • Roll Feed: 59' (18 meters)

Maximum Media Roll Diameter

  • 6.7" (170mm)

Borderless Printing Width

  • 8”, 10", 12”, 14", 16” 17", 20”, 24", 30”, 36" B4 (10.12"/257 mm), A3 (11.69"/297 mm), A3+ (12.95"/329 mm), A2 (16.54"/420 mm), B2 (20.28"/515 mm), A1 (23.39"/594 mm), B1 (28.66"/ 728 mm), A0 (33.11"/841 mm)

Paper Feed Method

  • Roll Feed: One Roll, Front-loading, Front Output, Front Loading
  • Manual Feed: One Roll, Front Output

Languages

  • SGRaster, HPGL/2, HP-RTL, PDF, JPEG

Noise Level Approx

  • Operation: 51 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 6.9 Bels

Physical Dimensions

  • 46.0“ x 54.7“ x 46.8“ (Main unit and TX Stacker)

Weight

  • Approx. 257 lbs (roll holder included, no inks, no print heads)

Power Source

  • AC-100-240V (50-60Hz)

Power Consumption

  • Maximum: 105W or less
  • Standby: 3.6W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-replaceable items

  • Print Head: PF-06
  • Maintenance Cartridge: MC-30
  • Ink Tanks: PFI-110/PFI-310/PFI-710

Software Included

  • TX Unified Printer Driver
  • Accounting Manager
  • Apple AirPrint
  • Canon Print Service
  • Device Management Console
  • Direct Print & Share
  • Free Layout Tool
  • Media Configuration Tool
  • PosterArtist Lite for Windows
  • Printer Driver Extra Kit for Windows/Mac (Free Print Utility Layout, Advanced Preview)
  • Optimized Driver for AutoCAD
  • Print Plug-in for Microsoft® Word/Excel/PowerPoint® for Windows
  • Quick Utility Toolbox

Canon imagePROGRAF TX 3000 MFP T36 Scanner Specifications:

Scanner Type

  • Contact image sensor (CIS) technology

Scan Accuracy

  • +/-0.1%

Speed

  • Monochrome: 13 ips
  • Color: 6 ips

Optical Resolutions

  • 1,200 dpi (adjustable from 100 dpi to 2,400 dpi)

Max. Resolutions

  • 9600 dpi interpolated

Max. Document Size

  • Length: 9600 dpi interpolated
  • Width: 38-inch document, 36-inch image

Max. Thickness

  • 0.079-inch (2mm)

Standard Interfaces

  • USB 3.0 (PC connector compatible with USB 2.0 & USB 3.0 sockets)

Canon imagePROGRAF TX3000 MFP Multifunction T36 Scanner

Canon’s T36 Scanner incorporates a SingleSensor Technology Assembly for more consistent color accuracy than a staggered CIS array scanner. It will scan media up to 36” wide and can fit documents as wide as 38” and as thick as 2 mm. Detail is impressive, thanks to 1200 dpi maximum optical resolution and 9600 dpi maximum resolution.

Canon imagePROGRAF TX3000 MFP Multifunction Security

With security becoming an increasing concern in business, Canon has equipped their TX Series printers with security features to help keep your confidential information confidential, including:

Secure Communication

  • 802.1x Authentication
  • SNMPv3
  • SSL/TLS
  • IPSec

Canon imagePROGRAF TX3000 Functionality Restrictions

  • Panel Lock by Remote UI
  • Remote UI Multilevel
  • Hide IP From Panel
  • Panel Access Control
  • Job Storage

Canon imagePROGRAF TX3000 Secure Storage

  • Self-Encrypting Hard Disk
  • Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)

The following functions can be disabled in administrator mode:

  • Direct USB Thumb Drive Printing
  • Internet Connection
  • FTP and Telnet communication protocols
  • Job Log Look-up

How-To: Canon Driver Download

Watch on YouTube

How-To: Canon Driver Installation & Config

Watch on YouTube

Canon imagePROGRAF TX3000 MFP Multifunction All-in-One 15.6” Touchscreen Computer

The TX-4000 includes a 15.6” touchscreen computer with Canon’s SmartWorks MFP Software, which enables you to mark-up documents directly on the monitor and Scan-to-Multipage PDF. The touchscreen attaches to the printer stand for easy interaction with the printer. Both scanner and printer can be used independently to maximize productivity, so no one has to wait for someone to finish printing before they can scan a document.

Canon imagePROGRAF TX3000 MFP Multifunction LUCIA TD Pigment Ink Set

Canon’s new 5-color LUCIA TD pigment ink set produces fine lines and sharp text on both inkjet and non-inkjet media. This ink set offers a great balance between bleed resistance, black density, and water resistance. Inks are available in 160 ml, 330 ml, and 700 ml ink tanks.

Canon imagePROGRAF TX3000 MFP Multifunction PF-06 PrintHead

Canon designed the 6-channel PF-06 Print Head to maximize output speed without compromising print quality. The 15,360 nozzles are shaped to minimize mist spray, making it possible to lay down 5 picoliter-sized ink droplets. Detail is remarkably sharp and overall image quality superb. Output is accurate to 2400 x 1200 dpi, with fine lines accurate to ±0.10% and as thin as 0.02mm.

Canon imagePROGRAF TX3000 MFP Multifunction Automatic Media Loading

Canon takes the hassle out of loading paper with their Automatic Media Loading technology. Just place your roll of media on the roll holder and the printer automatically feeds it through the printer feeder. No more manual roll feeding!

Canon imagePROGRAF TX3000 MFP Multifunction Sub-Ink Tank System Reduces Ink Waste

Standard on all imagePROGRAF printers, the Sub-Ink Tank System allows for almost all available ink in a tank to be used before replacing the tank. Besides virtually eliminating waste, it also lets you change inks on the fly for uninterrupted printing.
