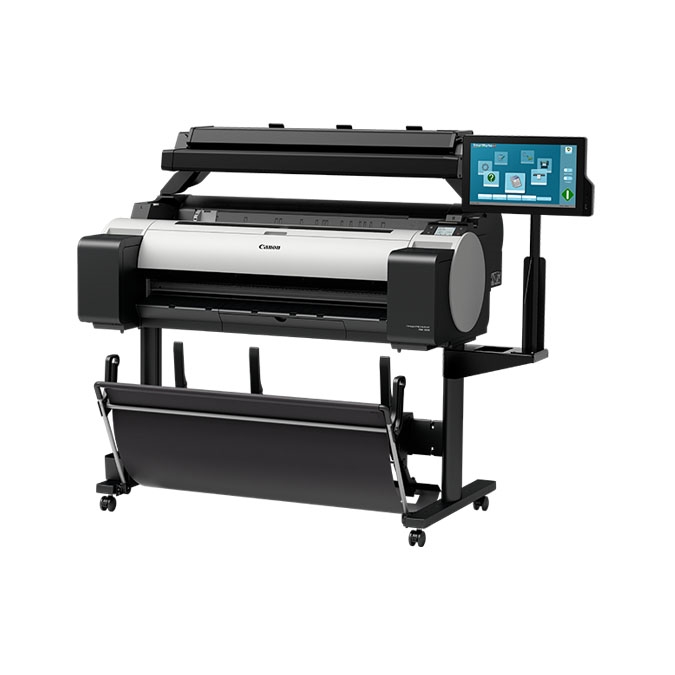

imagePROGRAF TM-300 MFP T36 Multifunction Canon TM-300 MFP T36 Multifunction Right View
Click on Image to Enlarge

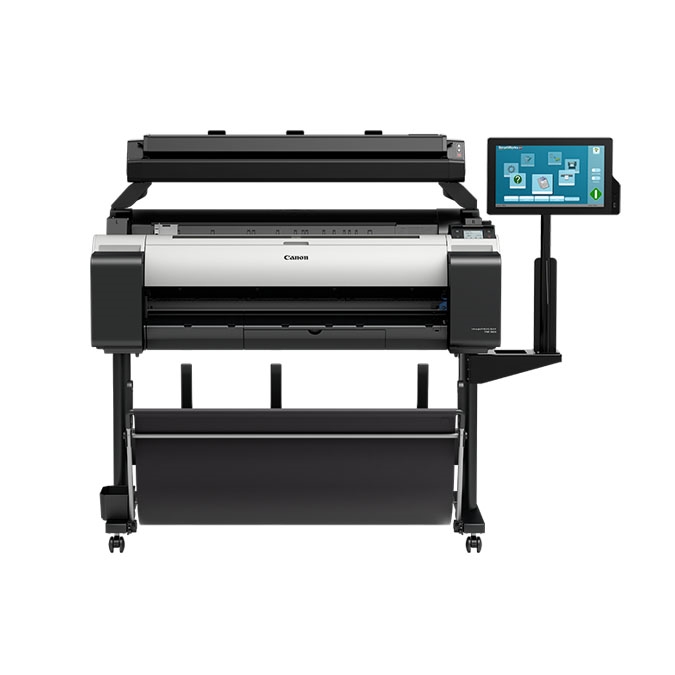

Canon imagePROGRAF TM-300 MFP T36 Multifunction All-In-One Printer Plotter 3058C010AA

Product Number: 3058C010AA
SKU: TM-300 MFP T36
In Stock
imagePROGRAF TM-300 MFP T36 Multifunction Click on Image to Enlarge
imagePROGRAF TM-300 MFP T36 Multifunction Canon TM-300 MFP T36 Multifunction Right View

Call for Best Price800-321-1974

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TM-300 MFP T36 Multifunction Plotter

The imagePROGRAF TM-300 MFP T36 is a complete Scan-To-Copy/File/Share integrated print solution designed for businesses needing fast, high-quality large format print output. Built on Canon’s proven imagePROGRAF TX Series printers, the TM-300 MFP incorporates the same proven technologies in a more compact and quieter package. The system includes Canon’s TM-300 36” large format printer, T36 scanner, and All-in-One computer with SmartWorks software. With its intuitive user interface and the ability to print and scan simultaneously, the TM-300 MFP simplifies printer functions and enhances productivity.

Canon TM Smartworks Software Setup

Watch on YouTube

Canon TM Multifunction Printer

Watch on YouTube

Canon imagePROGRAF TM-300 MFP T36 Multifunction Specs

Printer Type

  • 5-color 36" Printer

Number of Nozzles

  • Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

OS Compatibility

  • Windows 7, 8.1, 10 (32/64bit)
  • Windows Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
  • Macintosh OS X v10.10.5-v10.12x

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX
  • Wireless LAN (IEEE 802.11 b/g/n)

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 130ml or 300ml per color

Ink Type

  • Pigment Ink

Color Set

  • Pigment: Matte Black, Black, Cyan, Magenta, Yellow

Buffer Ram

  • 2 GB (Physical)

Media Width

  • Cut Sheet: 8-36
  • Roll Feed: 8-36

Media Thickness

  • 0.07-0.8mm

Maximum Roll Print Length

  • Roll Feed: 59' (18 meters)

Maximum Media Roll Diameter

  • 5.9" (150 mm)

Borderless Printing Width

  • 8”, 10, 12”, 14, 16” 17, 20”, 24, 36, B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm)

Paper Feed Method

  • Roll Feed: One Roll, Top-loading, Front Output
  • Cut Sheet: Top Loading, Front Output

Languages

  • SGRaster, HPGL/2, HP-RTL, JPEG

Noise Level Approx

  • Operation: 44 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 6.0 Bels or less

Physical Dimensions

  • 42 x 51 x 35

Weight

  • Approx. 130 lbs (roll holder included, no inks, no print heads)

Power Source

  • AC100-240V (50-60Hz)

Power Consumption

  • Maximum: 69W or less
  • Standby: 3.6W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-Replaceable Items

  • Print Head: PF-06
  • Maintenance Cartridge: MC-31
  • Ink Tanks: PFI-120/PFI-320
  • Cutter Blade: CT-08

Software Included

  • TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor

Scanner

  • Scanner Type: Contact Image Sensor (CIS) technology
  • Scan Accuracy: +/- 0.1%
  • Speed: 13 ips monochrome, 6 ips color (Copy, Standard Mode)
  • Optical Resolutions: 1200dpi (Adjustable from 100 dpi to 2,400 dpi)
  • Max Resolutions: 9600dpi interpolated
  • Max. Document Width: 38 inch document width (36 inch image width)
  • Max. Document Length: 315 (JPG or PDF), 598 (TIFF)
  • Max. Document Thickness: 0.079in (2mm)
  • Standard Interface: USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets)

How-To: Canon Driver Download

Watch on YouTube

How-To: Canon Driver Installation & Config

Watch on YouTube

The TM 300 MFP is an ideal printer for:

  • Technical documents
  • CAD drawings
  • GIS maps
  • Posters
  • Signage
  • Displays

Canon Large Format Printer Technology Made Smaller, Quieter & Faster

Canon designed the TM Series printers for work environments in need of a non-intrusive printer. The TM-300 has a smaller footprint than previous generation iPF printers, and can be positioned flush against a wall. By adding damping to the Platen Suction Fan, reducing vibration from the media cutter and refining the media feeding motor, noise levels have been reduced 60%. Thanks to improved print head scanning and a reduction in the time between processing each print, the TM-300 can produce 144 prints per hour—23% faster than Canon’s iPF Series printers.

TM-300 MFP highlights

  • Ease of Use Canon designed the TM Series with a 3” color touchscreen that simplifies accessing printer information and executing simple print functions.
  • Lucia TD Pigment Ink Set The TM-300 MFP produces dense and crisp lines and text with minimal feathering on both inkjet and non-inkjet papers. With Canon’s water resistant media, it produces prints capable of withstanding most outdoor conditions. Available in 130 ml or 330 ml ink tanks (ships with 490 ml of ink).
  • “Hot Swap” Ink Tanks  Canon designed the ink tanks so they can be replaced during printing, eliminating job-interrupting tank change-outs.
  • L-COA Processor  Canon’s L-COA processor monitors and controls ink layout to ensure high-resolution output. In conjunction with Canon’s advanced print head technology, this processor also enables print speed up to 144 A1 sized prints per hour on uncoated media.
  • Direct USB Thumb Drive Printing The TM-300 MFP lets you print JPEG and PDG files directly from files on your USB drive. Just connect a jump drive into the port on the printer, select your document and press “Print.”
  • Security Features Like all the TM Series printers, the TM-300 MFP is equipped with a host of security features to help protect confidential information.

Secure Communication

  • 802.1x Authentication
  • SNMPv3
  • SSL/TLS
  • PSec

Functionality Restrictions

  • Panel Lock by Remote UI
  • Remote UI Multilevel
  • Hide IP from Panel
  • Panel Access Control
  • Job Storage and PIN Printing

The following functions can be disabled in administrator mode:

  • Direct USB Thumb Drive Printing
  • Internet Connection
  • FTP and Telnet communication protocols
  • Job Log Look-up

Secure Storage

  • Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
