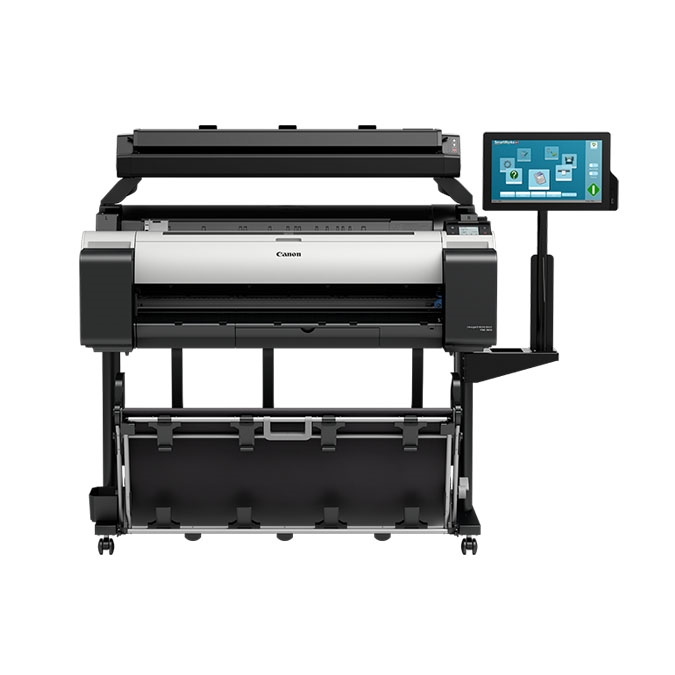

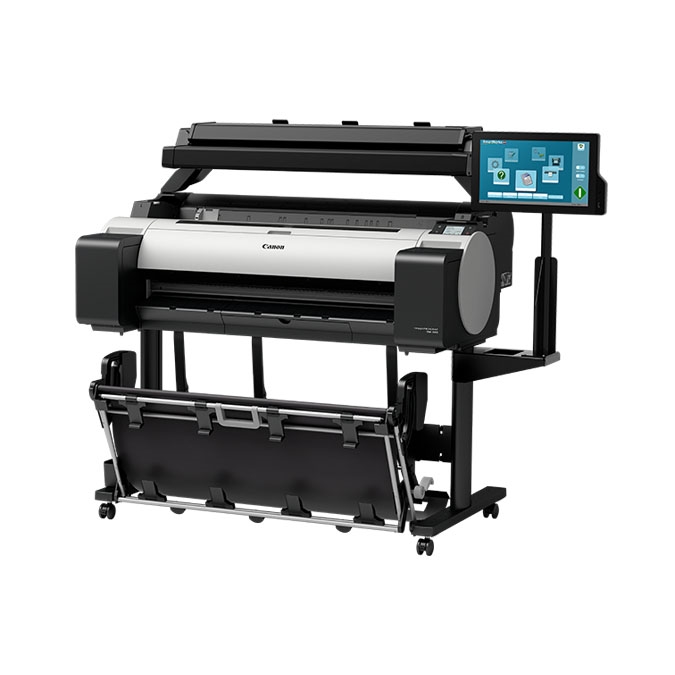

Canon imagePROGRAF TM-305 MFP T36 Multifunction All-In-One Printer Plotter 3056C006AA

Product Number: 3056C006AA
SKU: TM-305 MFP T36
In Stock
imagePROGRAF TM-305 MFP T36 Multifunction Click on Image to Enlarge
imagePROGRAF TM-305 MFP T36 Multifunction Canon TM-305 MFP T36 Multifunction

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TM-305 MFP T36: high-performance multifunction printer

A refined iteration of Canon’s TX series large format printers, the TM-305 incorporates Canon’s industry-leading print technology in a more compact and versatile package. With faster print and scan speeds than the TX & iPF series printers and advanced software capabilities, the TM-305 MFP offers a versatile solution for printing, copying, scanning, archiving and sharing everything from standard letter paper sized documents to poster-sized media. An intuitive, user-friendly interface makes it easy for non-technical employees to operate.

Designed For Work Environments Demanding High-Quality Output in Low Volume

The TM-305 MFP is an ideal solution for businesses that need high-quality printouts, but don’t require high-volume printing. With print speeds as fast as 144 pages per hour (A1) and a scan speed of 6 inches per second in color, it is an ideal print/scan solution for technical documents, CAD renderings, GIS maps, posters, signage and displays—particularly with its ability to print on a wide range of media.

What’s included:

  • T36 scanner
  • Scanner stand assembly and AIO mount
  • 2 paper edge guides
  • 3 Document return guides
  • Calibration target
  • USB stick with SmartWorks MFP software (includes PDF documentation: T36 Scanner User Manual and Quick Start Guide)
  • T36 Scanner User Manual and Quick Start Guide
  • USB3 cable (2 meters)
  • Power Supply
  • 6" AIO PC or Touchscreen


TM-305 MFP Highlights

  • Ease of Use Canon designed the TM Series with a 3” color touchscreen that simplifies accessing printer information and executing simple print functions.
  • Lucia TD Pigment Ink Set The TM-305 MFP produces dense and crisp lines and text with minimal feathering on both inkjet and non-inkjet papers. With Canon’s water resistant media, it produces prints capable of withstanding most outdoor conditions. Available in 130 ml or 330 ml ink tanks (ships with 490 ml of ink).
  • “Hot Swap” Ink Tanks  Canon designed the ink tanks so they can be replaced during printing, eliminating job-interrupting tank change-outs.
  • Direct USB Thumb Drive Printing The TM-305 MFP lets you print JPEG and PDG files directly from files on your USB drive. Just connect a jump drive into the port on the printer, select your document and press “Print.”
  • L-COA Processor  Canon’s L-COA processor monitors and controls ink layout to ensure high-resolution output. In conjunction with Canon’s advanced print head technology, this processor also enables print speed up to 144 A1 sized prints per hour on uncoated media.
  • Security Features Like all the TM Series printers, the TM-305 MFP is equipped with a host of security features to help protect confidential information.

Secure Communication

  • 802.1x Authentication
  • SNMPv3
  • PSec

Functionality Restrictions

  • Panel Lock by Remote UI
  • Remote UI Multilevel
  • Hide IP from Panel
  • Panel Access Control
  • Job Storage and PIN Printing

The following functions can be disabled in administrator mode

  • Direct USB Thumb Drive Printing
  • Internet Connection
  • FTP and Telnet communication protocols
  • Job Log Look-up

Secure Storage

  • Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)

Explore the Full Line of Canon TM Series Printers

36-inch models

24-inch models


Canon imagePROGRAF TM-305 MFP T36 Multifunction Specs


Printer Type

  • 5-color 36" Printer

Number of Nozzles

  • Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

OS Compatibility

  • Windows 7, 8.1, 10 (32/64bit)
  • Windows Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
  • Macintosh OS X v10.10.5-v10.12x

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX
  • Wireless LAN (IEEE 802.11 b/g/n)
  • Direct USB Thumb Drive Printing

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 130ml or 300ml per color

Ink Type

  • Pigment Ink

Color Set

  • Pigment: Matte Black, Black, Cyan, Magenta, Yellow

Buffer Ram

  • 128 GB (2 GB Physical)

Media Width

  • Cut Sheet: 8-36
  • Roll Feed: 8-36

Media Thickness

  • 0.07-0.8mm

Maximum Roll Print Length

  • Roll Feed: 59' (18 meters)

Maximum Media Roll Diameter

  • 5.9" (150 mm)

Borderless Printing Width

  • 8”, 10, 12”, 14, 16” 17, 20”, 24, 36, B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm)

Paper Feed Method

  • Roll Feed: One Roll, Top-loading, Front Output
  • Cut Sheet: Top Loading, Front Output


  • SGRaster, HPGL/2, HP-RTL, JPEG

Noise Level Approx

  • Operation: 44 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 6.0 Bels or less

Physical Dimensions

  • 42 x 51 x 35


  • Approx. 134 lbs (roll holder included, no inks, no print heads)

Power Source

  • AC100-240V (50-60Hz)

Power Consumption

  • Maximum: 69W or less
  • Standby: 3.6W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-Replaceable Items

  • Print Head: PF-06
  • Maintenance Cartridge: MC-31
  • Ink Tanks: PFI-120/PFI-320
  • Cutter Blade: CT-08

Software Included

  • TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor


Scanner Type

  • Contact Image Sensor (CIS) technology
Scan Accuracy
  • +/- 0.1%
  • 13 ips monochrome, 6 ips color (Copy, Standard Mode)
Optical Resolutions
  • 1200dpi (Adjustable from 100 dpi to 2,400 dpi)
Max Resolutions
  • 9600dpi interpolated
Max. Document Width
  • 38 inch document width (36 inch image width)
Max. Document Length
  • 315 (JPG or PDF), 598 (TIFF)
Max. Document Thickness
  • 0.079in (2mm)
Standard Interface
  • USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets)
