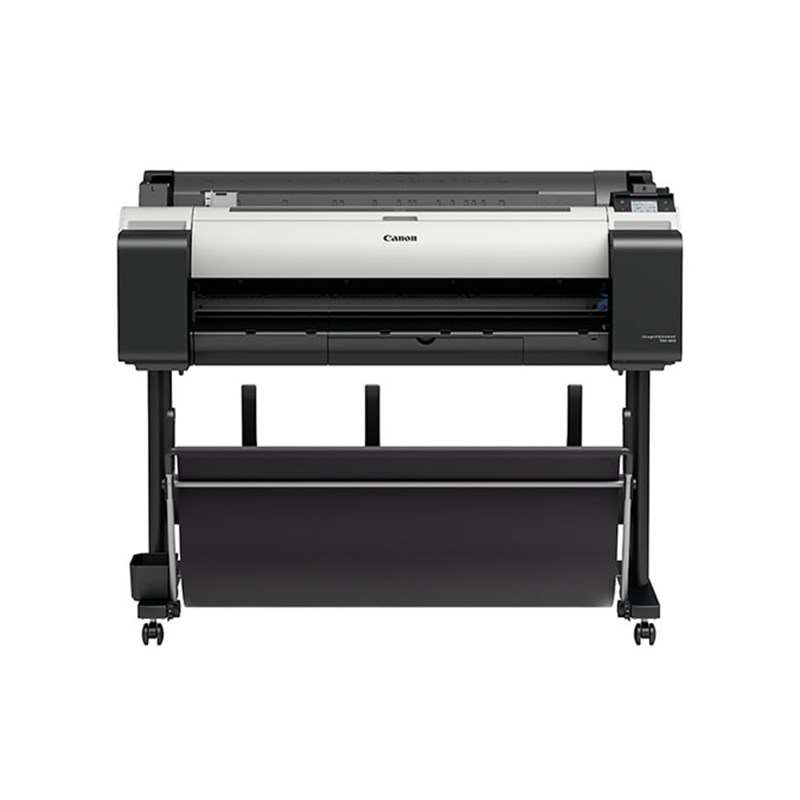

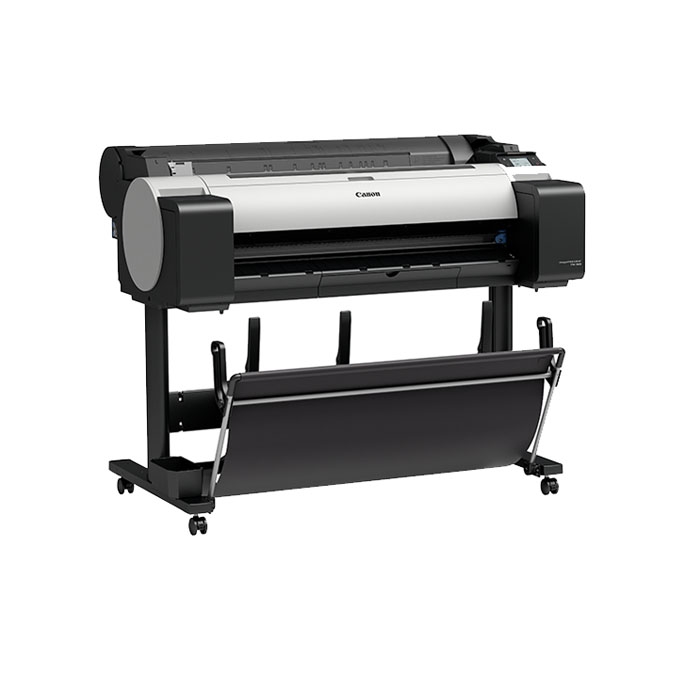

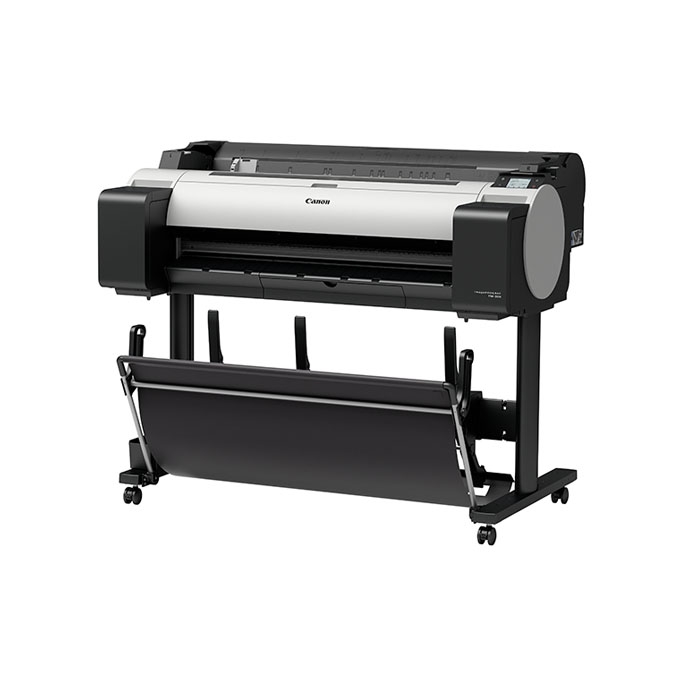

Canon imagePROGRAF TM-300 Large Format Printer Plotter imagePROGRAF TM-300 Left View imagePROGRAF TM-300 Right View
Click on Image to Enlarge

Canon imagePROGRAF TM-300 Large Format Printer Plotter 3058C002AA

Product Number: 3058C002AA
SKU: TM-300
In Stock
Canon imagePROGRAF TM-300 Large Format Printer Plotter Click on Image to Enlarge
Canon imagePROGRAF TM-300 Large Format Printer Plotter imagePROGRAF TM-300 Left View imagePROGRAF TM-300 Right View

Call for Best Price800-321-1974

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TM-300 Large Format Printer 36"

Sized for Small Business, Priced for Small Business

Launched in September 2018, the Canon TM series printers incorporate their renowned large format printer technologies in a more compact design—and at a more affordable price point. The 36” TM-300 is a pigment ink machine capable of producing high-quality, long-lasting prints ranging from A0 size paper to posters and roller banners. An excellent choice for small businesses needing quality output, but lacking the space and budget for a high-end, large format printer.

Canon imagePROGRAF TM-300 Large Format Printer Specs

Printer Type

  • 5-color 36" Printer

Number of Nozzles

  • Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

OS Compatibility

  • Windows 7, 8.1, 10 (32/64bit)
  • Windows Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
  • Macintosh OS X v10.10.5-v10.12x

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX
  • Wireless LAN (IEEE 802.11 b/g/n)
  • Direct USB Thumb Drive Printing

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 130ml or 300ml per color

Ink Type

  • Pigment Ink

Color Set

  • Pigment: Matte Black, Black, Cyan, Magenta, Yellow

Buffer Ram

  • 128 GB (2 GB Physical)

Media Width

  • Cut Sheet: 8-36
  • Roll Feed: 8-36

Media Thickness

  • 0.07-0.8mm

Maximum Roll Print Length

  • Roll Feed: 59' (18 meters)

Maximum Media Roll Diameter

  • 5.9" (150 mm)

Borderless Printing Width

  • 8”, 10, 12”, 14, 16” 17, 20”, 24, 36 B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm), B1 (28.66/ 728 mm), A0 (33.11/841 mm)

Paper Feed Method

  • Roll Feed: One Roll, Top-loading, Front Output
  • Cut Sheet: Top Loading, Front Output

Languages

  • SGRaster, HPGL/2, HP-RTL, JPEG, PDF

Noise Level Approx

  • Operation: 44 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 6.0 Bels or less

Physical Dimensions

  • 42 x 51 x 35

Weight

  • Approx. 134 lbs (roll holder included, no inks, no print heads)

Power Source

  • AC100-240V (50-60Hz)

Power Consumption

  • Maximum: 69W or less
  • Standby: 3.6W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-Replaceable Items

  • Print Head: PF-06
  • Maintenance Cartridge: MC-31
  • Ink Tanks: PFI-120/PFI-320
  • Cutter Blade: CT-08

Software Included

  • TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor

How-To: Canon Driver Download

Watch on YouTube

How-To: Canon Driver Installation & Config

Watch on YouTube

The TM-300 is an Ideal Printer for:

  • Technical documents
  • CAD drawings
  • GIS maps
  • Posters
  • Signage
  • Displays

Industry-Leading Canon Technologies for Industry-Leading Performance

The TM-300 can print up to 144 D sized prints per hour, without any compromise in quality. Like all TM Series printers, the TM-300 relies on Canon’s 5-color Lucia TD Pigment Ink Set and PF-06 print head for high-resolution, color-accurate prints. With a 60% reduction in noise from previous models, a compact footprint, and the ability to position it flush to a wall, the TM-300 is particularly well suited to the needs of engineering, construction, corporate, retail, education and government offices in need of a versatile, cost-effective in-house printer.

TM-300 highlights

  • Easy to Use - Canon designed the TM Series for ease of use by non-technical personnel. The 3” color touchscreen makes accessing printer information and executing simple print functions simple
  • Lucia TD Pigment Ink Set - Canon’s 5-color Lucia TD ink produces fine lines and sharp text on both inkjet and non-inkjet papers. When printing with water-resistant media, it produces prints able to withstand most outdoor conditions. Available in 130 ml or 330 ml ink tanks (ships with 490 ml of ink).
  • “Hot Swap” Ink Tanks - Canon designed the ink tanks so they can be replaced during printing, eliminating job-interrupting tank change-outs.
  • Flat Stacking Basket - Canon’s flat stacking basket lets you stack up to twenty Arch D plain paper prints.
  • L-COA Processor - Canon’s L-COA processor monitors and controls ink layout to ensure high-resolution output. In conjunction with Canon’s advanced print head technology, this processor also enables print speed up to 144 A1 sized prints per hour on uncoated media.
  • Direct USB Thumb Drive Printing - The TM-300 lets you print JPEG and PDF files directly from files on your USB drive. Just plug your drive into the port on the printer, select your document and press “Print.”
  • Security Features - Like all the TM Series printers, the TM-300 is equipped with a host of security features to help protect confidential information, including:

Secure Communication

  • 1x Authentication
  • SNMPv3
  • SSL/TLS
  • PSec

Functionality Restrictions

  • Panel Lock by Remote UI
  • Remote UI Multilevel
  • Hide IP from Panel
  • Panel Access Control
  • Job Storage and PIN Printing

The following functions can be disabled in administrator mode

  • Direct USB Thumb Drive Printing
  • Internet Connection
  • FTP and Telnet communication protocols
  • Job Log Look-up

Secure Storage

  • Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
  • Secure File Erase*

Explore the Full Line of Canon TM Series Printers

36-inch models

24-inch models
