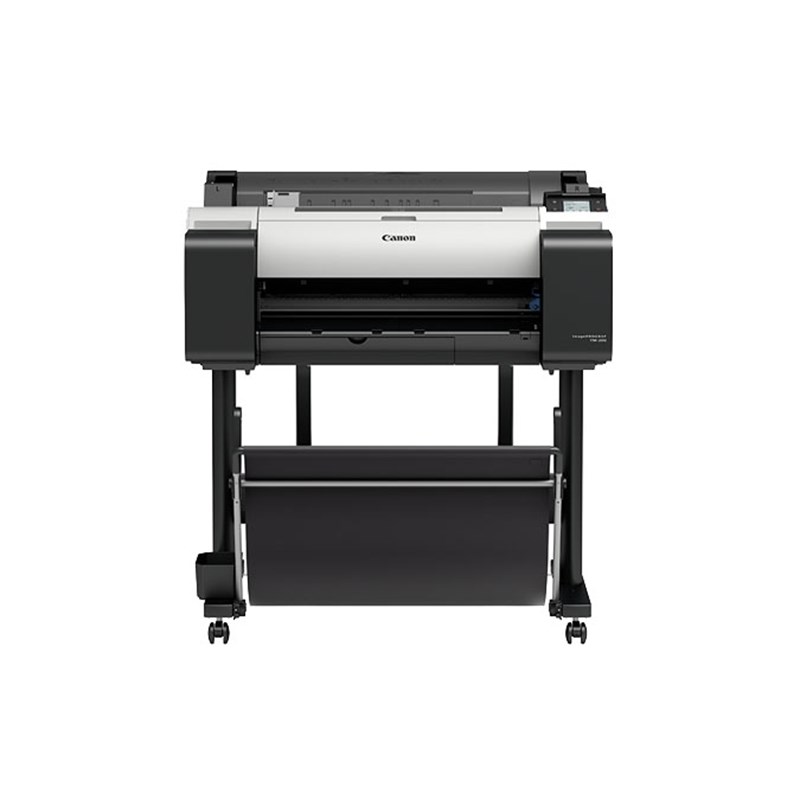

Canon imagePROGRAF TM-200 Large Format Printer 3062C002AA imagePROGRAF TM-200 Printer Right View imagePROGRAF TM-200 Printer Left View
Click on Image to Enlarge

Canon imagePROGRAF TM-200 Large Format Printer 3062C002AA

Product Number: 3062C002AA
SKU: TM-200
In Stock
Canon imagePROGRAF TM-200 Large Format Printer 3062C002AA Click on Image to Enlarge
Canon imagePROGRAF TM-200 Large Format Printer 3062C002AA imagePROGRAF TM-200 Printer Right View imagePROGRAF TM-200 Printer Left View

Call for Best Price800-321-1974

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TM-200 Large Format Printer

Compact, Quiet, and Fast for Small Offices

Canon designed their TM Series plotter printers to provide a cost-effective, in-house print solution for a wide range of businesses. From engineering and construction to education and retail, the TM-200 produces detailed (2400 x 1200 dpi), long-lasting paper prints in a wide range of sizes. With its space-saving, compact size (the smallest footprint in its class), flush installation and quiet operation, it’s the ideal print solution for small offices in need of quality printouts on a budget.

Canon imagePROGRAF TM-200 Large Format Printer Specs

Printer Type

  • 5-color 24" Printer

Number of Nozzles

  • Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

OS Compatibility

  • Windows 7, 8.1, 10 (32/64bit)
  • Windows Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
  • Macintosh OS X v10.10.5-v10.12x

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX
  • Wireless LAN (IEEE 802.11 b/g/n)

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 130ml or 300ml per color

Ink Type

  • Pigment Ink

Color Set

  • Pigment: Matte Black, Black, Cyan, Magenta, Yellow

Buffer Ram

  • 2 GB (Physical)

Media Width

  • Cut Sheet: 8-24
  • Roll Feed: 8-24

Media Thickness

  • 0.07-0.8mm

Maximum Roll Print Length

  • Roll Feed: 59' (18 meters)

Maximum Media Roll Diameter

  • 5.9" (150 mm)

Borderless Printing Width

  • 8”, 10, 12”, 14, 16” 17, 20”, 24, B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm)

Paper Feed Method

  • Roll Feed: One Roll, Top-loading, Front Output
  • Cut Sheet: Top Loading, Front Output

Languages

  • SGRaster, HPGL/2, HP-RTL, JPEG

Noise Level Approx

  • Operation: 44 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 6.0 Bels or less

Physical Dimensions

  • 42 x 38 x 34

Weight

  • Approx. 112 lbs (roll holder included, no inks, no print heads)

Power Source

  • AC100-240V (50-60Hz)

Power Consumption

  • Maximum: 69W or less
  • Standby: 3.6W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-Replaceable Items

  • Print Head: PF-06
  • Maintenance Cartridge: MC-31
  • Ink Tanks: PFI-120/PFI-320
  • Cutter Blade: CT-08

Software Included

  • TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor

How-To: Canon Driver Download

Watch on YouTube

How-To: Canon Driver Installation & Config

Watch on YouTube

The TM-200 is an Ideal Printer for:

  • Technical documents
  • CAD drawings
  • GIS maps
  • Posters
  • Signage
  • Displays

Canon Printer Technology Innovations: Standard equipment with the TM-200

Incorporating many of Canon’s highly regarded large format printer technologies, the TM-200 sets new standards for 24” printers. The output is remarkably fast, up to 144 D sized prints per hour thanks to Canon’s 6-channel optimized print head, with sharp lines and vivid colors from the 5-color Lucia TD pigment ink system. Realizing most offices don’t have a printer technician on standby, Canon also designed the TM-200 with an intuitive user interface for ease of use.

Canon TM-200 Highlights

  • Ease of Use Canon designed the TM Series with a 3” color touchscreen that simplifies accessing printer information and executing simple print functions.
  • Lucia TD Pigment Ink Set The TM-200 produces fine lines and sharp text on both inkjet and non-inkjet papers. With water-resistant media, it produces prints capable of withstanding most outdoor conditions. Available in 130 ml or 330 ml ink tanks (ships with 490 ml of ink).
  • Direct USB Thumb Drive Printing The TM-200 lets you print JPEG and PDG files directly from files on your USB drive. Just plug your drive into the port on the printer, select your document and press “Print.”
  • Security Features Like all the TM Series printers, the TM-200 is equipped with a host of security features to help protect confidential information.

Secure Communication

  • 802.1x Authentication
  • SNMPv3
  • SSL/TLS
  • PSec

Functionality Restrictions

  • Panel Lock by Remote UI
  • Remote UI Multilevel
  • Hide IP from Panel
  • Panel Access Control
  • Job Storage and PIN Printing

The following functions can be disabled in administrator mode

  • Direct USB Thumb Drive Printing
  • Internet Connection
  • FTP and Telnet communication protocols
  • Job Log Look-up

Secure Storage

  • Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)

Explore the Full Line of Canon TM Series Printers

36-inch models

24-inch models

  • imagePROGRAF TM-200
  • imagePROGRAF TM-205 (built-in HDD and PDF support)
  • imagePROGRAF TM-200MFP L24ei (multifunction printer with low-volume scanning solution)
