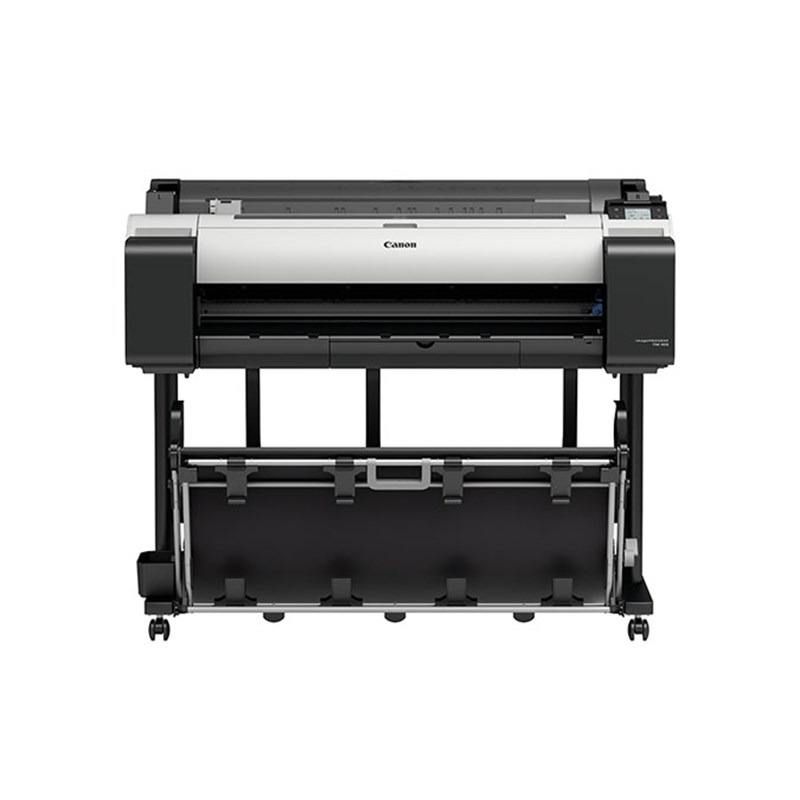

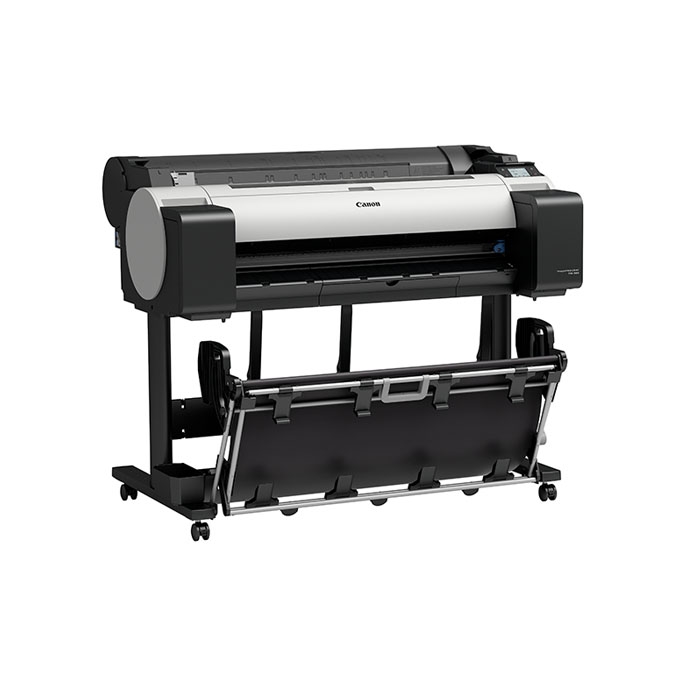

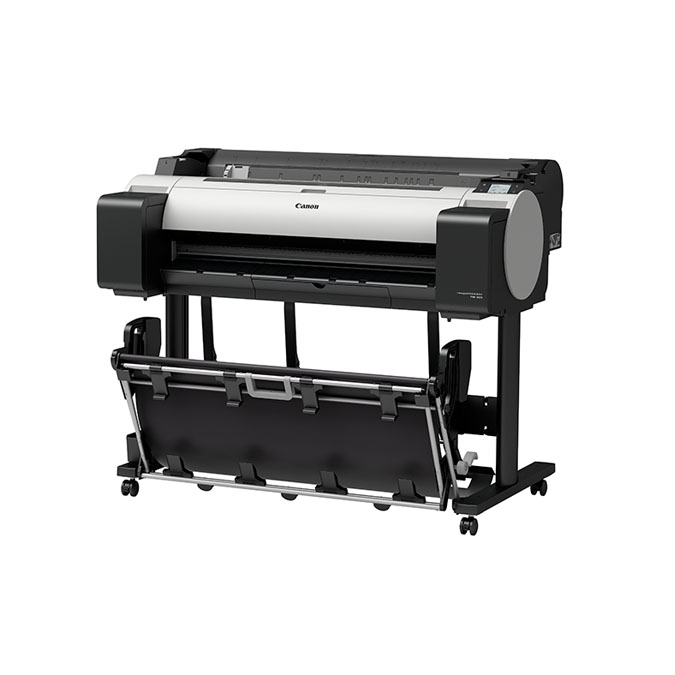

Canon imagePROGRAF TM-305 Large Format Printer imagePROGRAF TM-305 Printer Right View imagePROGRAF TM-305 Printer Left View
Click on Image to Enlarge

Canon imagePROGRAF TM-305 Large Format Printer 3056C002AA

Product Number: 3056C002AA
SKU: TM-305
In Stock
Canon imagePROGRAF TM-305 Large Format Printer Click on Image to Enlarge
Canon imagePROGRAF TM-305 Large Format Printer imagePROGRAF TM-305 Printer Right View imagePROGRAF TM-305 Printer Left View

Call for Best Price800-321-1974

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TM-305 Large Format Printer Overview

Redefining the Capabilities of Large Format Printers

Launched in September of 2018, Canon’s TM Series are large format inkjet printers with a small footprint and sound-dampening advancements that makes them ideal for small offices. Designed to meet the needs of businesses that need small runs of high-quality prints, the 36” TM-305 is the perfect in-house print solution for engineering, construction, corporate, retail, education, and government sectors.

Canon imagePROGRAF TM-305 Large Format Printer Specs

Printer Type

  • 5-color 36" Printer

Number of Nozzles

  • Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

OS Compatibility

  • Windows 7, 8.1, 10 (32/64bit)
  • Windows Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
  • Macintosh OS X v10.10.5-v10.12x

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX
  • Wireless LAN (IEEE 802.11 b/g/n)
  • Direct USB Thumb Drive Printing

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 130ml or 300ml per color

Ink Type

  • Pigment Ink

Color Set

  • Pigment: Matte Black, Black, Cyan, Magenta, Yellow

Buffer Ram

  • 128 GB (2 GB Physical)

Media Width

  • Cut Sheet: 8-36
  • Roll Feed: 8-36

Media Thickness

  • 0.07-0.8mm

Maximum Roll Print Length

  • Roll Feed: 59' (18 meters)

Maximum Media Roll Diameter

  • 5.9" (150 mm)

Borderless Printing Width

  • 8”, 10, 12”, 14, 16” 17, 20”, 24, 36 B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm), B1 (28.66/ 728 mm), A0 (33.11/841 mm)

Paper Feed Method

  • Roll Feed: One Roll, Top-loading, Front Output
  • Cut Sheet: Top Loading, Front Output

Languages

  • SGRaster, HPGL/2, HP-RTL, JPEG, PDF

Noise Level Approx

  • Operation: 44 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 6.0 Bels or less

Physical Dimensions

  • 42 x 51 x 35

Weight

  • Approx. 134 lbs (roll holder included, no inks, no print heads)

Power Source

  • AC100-240V (50-60Hz)

Power Consumption

  • Maximum: 69W or less
  • Standby: 3.6W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-Replaceable Items

  • Print Head: PF-06
  • Maintenance Cartridge: MC-31
  • Ink Tanks: PFI-120/PFI-320
  • Cutter Blade: CT-08

Software Included

  • TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor

How-To: Canon Driver Download

Watch on YouTube

How-To: Canon Driver Installation & Config

Watch on YouTube

The TM-305 is an ideal printer for:

  • Technical documents
  • CAD drawings
  • GIS maps
  • Posters
  • Signage
  • Displays

No Scrimping on Canon’s Industry-Leading Printer Technology

Built on Canon’s proven large printer format technology, the TM-305 incorporates the LUCIA TD pigment ink set and PF-06 Print Head for ultra-sharp lines and text, print speeds up to 144 D sized prints per hour and Canon’s Sub Ink Tank System that allows empty tanks to be replaced without stopping the printer. With USB thumb drive printing capability, Wi-Fi compatibility for printing jobs quickly, and a built-in 500GB hard drive to relieve workload from your host computer, the TM-305 offers unprecedented capabilities for its size.

TM-305 highlights

  • Easy Operation - Canon designed the TM Series for ease of use by non-technical personnel. A 3” color touchscreen makes it easy to execute simple print functions and access printer information.
  • Lucia TD Pigment Ink Set - This 5-color ink puts down fine lines and sharp text on both inkjet and non-inkjet papers, and when printing with water-resistant media you can product prints capable of withstanding outdoor conditions. Available in 130 ml or 330 ml ink tanks (ships with 490 ml of ink).
  • “Hot Swap” Ink Tanks - Canon designed the ink tanks so they can be replaced during printing, eliminating job-interrupting tank change-outs.
  • Flat Stacking Basket - Canon’s flat stacking basket lets you stack up to twenty Arch D plain paper prints.
  • Direct USB Thumb Drive Printing - Print JPEG and PDG files directly from files on your USB drive. Just plug your USB drive into the port on the printer and hit “Print.”
  • L-COA Processor - Canon’s L-COA processor monitors and controls ink layout to ensure high-resolution output. In conjunction with Canon’s advanced print head technology, this processor also enables print speed up to 144 A1 sized prints per hour on uncoated media.
  • Security Features - Like all the TM Series printers, the TM-305 is equipped with security features to minimize the risk of confidential information being leaked.

Secure Communication

  • 1x Authentication
  • SNMPv3
  • SSL/TLS
  • PSec

Functionality Restrictions

  • Panel Lock by Remote UI
  • Remote UI Multilevel
  • Hide IP from Panel
  • Panel Access Control
  • Job Storage and PIN Printing

The following functions can be disabled in administrator mode

  • Direct USB Thumb Drive Printing
  • Internet Connection
  • FTP and Telnet communication protocols
  • Job Log Look-up

Secure Storage

  • Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
  • Secure File Erase*
