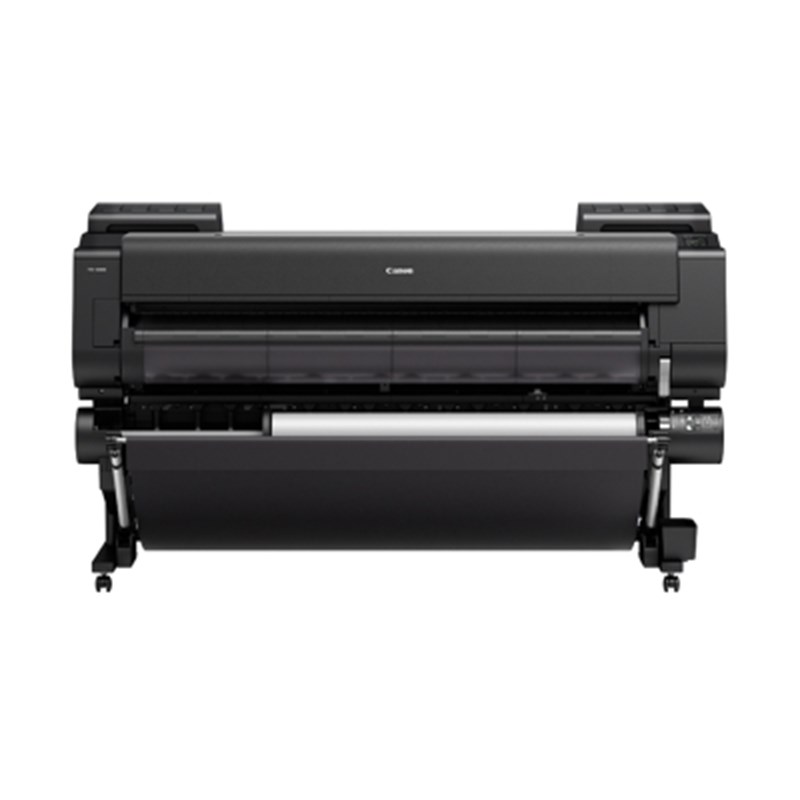

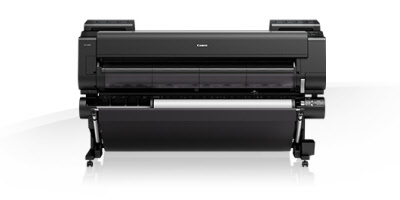

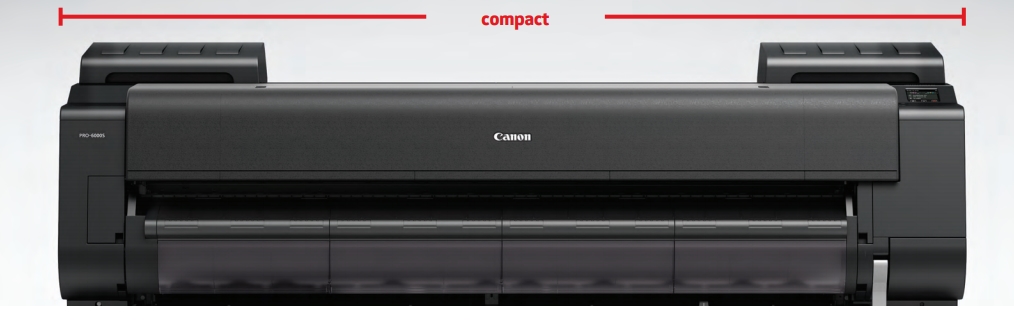

Canon imagePROGRAF PRO-6000s 60-inch Large Format Printer

Product Number: 1126C005AA
SKU: CanonPro6000S
In Stock
imagePROGRAF PRO 6000s Plotter Printer Click on Image to Enlarge
imagePROGRAF PRO 6000s Plotter Printer Canon imagePROGRAF PRO-6000S 60-inch Printer canon pro 6000s printer printhead canon pro imageprograf 6000s printer

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF PRO-6000s 60-inch Large Format Printer 1126C005AA

The Canon Pro-6000s 60-inch printer/plotter is offered for sale online at WAB Supply. For structured environments like offices, universities, and various types of professional facilities, the PRO-6000S is equipped with high capacity ink tanks to provide support for workplaces who need support throughout a busy day of printing.

Canon imagePROGRAF PRO-6000s 60-inch Printer 1126C005AA Specs

Canon imagePROGRAF PRO-6000s Print Specs

Printing Technology

  • FINE: Full-Photolithography Nozzle Engineering

Head Configuration

  • 12-Channel Integrated Type

Nozzle Configuration

  • 1,536 Nozzles x 12 Channels: 18,432 Total

Minimum Droplet Size

  • 4 Picoliters per Color

Maximum Print Resolution

  • Up to 2312 x 1200 dpi

Ink Information

  • Type-Pigment-Based LUCIA PRO Ink Technology
  • PFI-1100 (160 ml): PBK, MBK, C, M, Y, PC, PM, GY
  • PFI-1300(330 ml): PBK, MBK, C, M, Y, PC, PM, GY
  • PFI-1700(700 ml): PBK, MBK, C, M, Y, PC, PM

Canon imagePROGRAF PRO-6000s Printer Specs

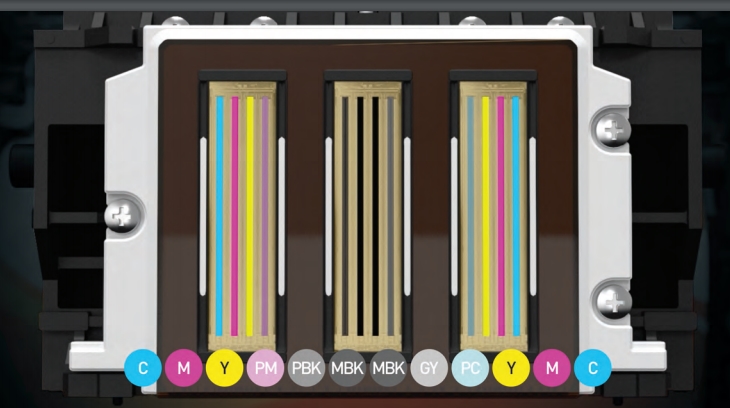

Print Head

  • PF-10


  • Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Photo Gray

Ink Tank Shipped with Printer

  • 8 colors:
  • MBK/C/Y (330 ml Starter Tank, Each Color)
  • PBK/PC/PM/GY(190 ml Starter Tank, Each Color)

Hard Disk Capacity

  • 320 GB

Printer Memory

  • 3 GB

Printer Stand

  • Standard


  • 3.5" Color LCD Touch-Screen

Size/Weight (with basket open)

  • PRO-6000S: 46.0" (H)x 78.7" (W) x 38.7" (D)/Apprax.  359 lb.

Canon imagePROGRAF PRO-6000s Media Specs

Media Feed

  • PRO-6000S: 46.0" (H)X 78.7" (W)x 38.7" (D)/Apprax. 359 lb.

Media Width

  • PRO-6000S: 8" x 60" (Cut-Sheet and Roll)

Minimum Media Length

  • 8"

Maximum Print Length

  • 59" (Roll Paper)
  • 63" (Cut-Sheet)

Borderless Printing Widths

  • PRO-6000S: 10"/14"/17"/24"/36"/42"/44"/50"/54"/60"

Media Thickness

  • .07 mm - 8 mm

Media Core Sizes

  • 2" or 3" Core(with Supplied Adapter)

Printable Margins

  • Roll Paper: Top: 3 mm: Bottom: 3mm: Side: 3mm
  • Cut-Sheet: Top: 3 mm: Bottom: 20 mm: Side: 3mm

Maximum Media Roll (Outer Dia.)

  • 6.7" (170 mm)

Canon imagePROGRAF PRO-6000s General Info


  • HiSpeed USB. 10/100/1000Base-T/TX Wireless Lan (IEEE 802.11 b//g/n)

Printer Language

  • Swift Graphic Raster (SGRaster)

Recommended Operating Environment"

  • Temperature: 59 - 86 degrees F (15-30 C)
  • Humidity: 10 - 80% (No Condensation)

Power Supply

  • AC 100-240 V (50 - 60 Hz)

Power Consumption

  • PRO-6000S Maximum: 113W or Less
  • Standby: 1.8W or Less
  • Power Off: 0.5W or Less

Printing Software

  • imagePROGRAF Printer Driver. Print Studio PRO. Print Plug-In for Microsoft Office. PosterArtist lite

Optional Software

  • PosterArtist

OS Compatibility

  • 32-bit: Windows Vista/7/8/8.1/10
  • 64-bit: Windows Vista/7/8/8.1/10
  • Mac: OS X v10.75 - 10.11x


  • Accounting Manager, Device Management Console, Media Configuration Tool, Quick Utility Toolbox

User-Replaceable items

  • Print Head (PF-10)
  • Maintenance Cartridge (MC-30)
  • Rotary Cutter (CT-07)


  • PRO-6000S: Roll holder Set (RH2-65)

How-To: Canon Driver Download

Watch on YouTube

How-To: Canon Driver Installation & Config

Watch on YouTube

Canon imagePROGRAF PRO-6000s 60 inch printer Contact WAB Paper Supply for Canon PRO-6000s 60

Many ink tank options are available, including 160 ml, 330 ml, and 700 ml. We understand the demands of industrial and commercial companies can be intense, but they can also be appropriately prepared for. With the PRO-6000s, you can be prepared to waste less ink with the new sub-ink tank system designed to remove any ink from a cartridge before replacing it. It’s a perfect feature for any busy workplaces because you will get more out of each tank, and your quarterly budget will get more bang for its buck.

Canon imagePROGRAF PRO-6000S for Professional Quality Photographic Printing

Aside from the corporate professionals of the world, creative-minded people need access to plotter printers as well. With an 11-COLOR plus Chroma Optimizer ink system, the demands of photographers, designers, and artists of the world can be successfully met. Anti-bronzing technologies and other various features help make this the Canon PRO-6000s a perfect machine for creatives anywhere with high-quality colors printed every time.

Benefits of the Canon imagePROGRAF PRO-6000S 60-inch Printer

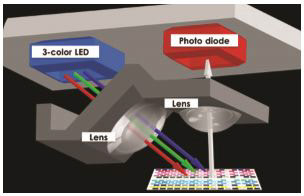

Canon imagePROGRAD Pro-6000s Calibration ProcessOnce you purchase the Canon imagePROGRAF PRO-6000S 60” the benefits below will be noticeable after multiple uses.

  • LUCIA PRO 8 inks to print colors exactly matching your design
  • 1.28” wide print head for easy and faster printing while maintaining quality
  • Attractive black hardware design
  • Print PDF and JPEG with USB
  • WI-FI connectivity
  • “hot swap” ink tanks for uninterrupted printing
  • Color consistency between jobs and production sites
  • Multipositional basket
  • Printing ability from advanced graphic software’s

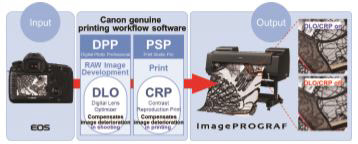

Canon imagePROGRAF PRO-6000s workflow

For more features and benefits visit the PDFs above
