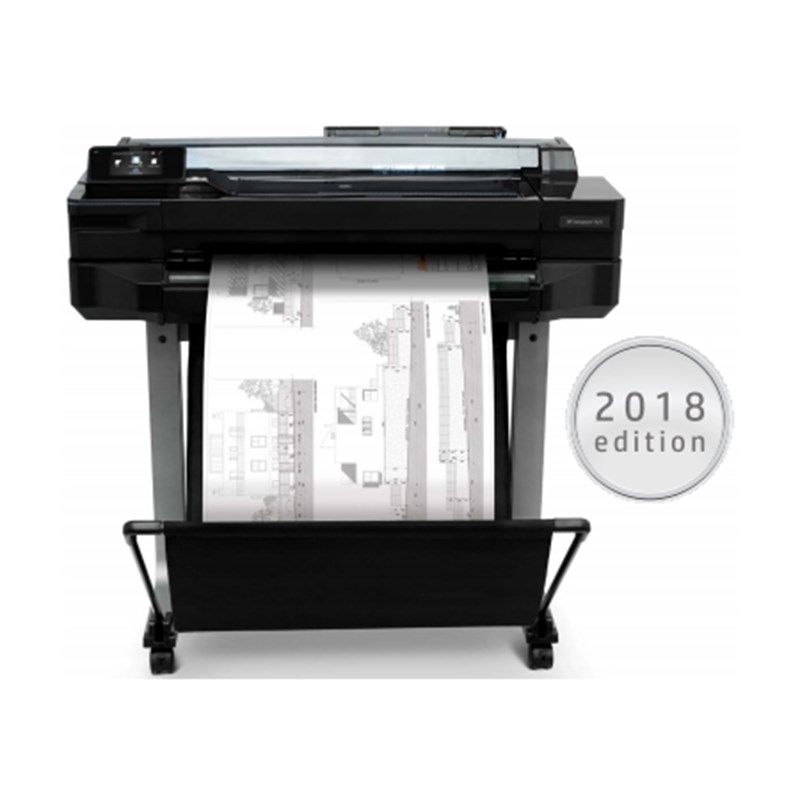

HP DesignJet T520 Printer (24 in)

Product Number: CQ890C
SKU: CQ890C
In Stock
HP DesignJet T520 Printer CQ890C Click on Image to Enlarge
HP DesignJet T520 Printer CQ890C T520 Technical Printer 24 HP DesignJet T520 24

Call for Best Price800-321-1974

Get the best price:

Call Live Chat E-Mail

HP DesignJet T520 Printer (24 in)

HP DesignJet T520 24-in Printer Specs:

Model Size

  • 24 in

Functions

  • Print

Speed Specifications

  • Print time line drawing (economode, D plain paper)
    35 sec/page
  • Print speed line drawing (economode, D plain paper)
    70 D prints per hour

Memory specifications

  • Memory
    1 GB
  • Internal storage
    None

Technical Specifications

  • Print quality (best)
    Color: Up to 2400 x 1200 optimized dpi
    Black: Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi and Optimization For Photo Paper selected
  • Print Technology
    HP Thermal Inkjet
  • Number of print cartridges
    4 (cyan, magenta, yellow, black)
  • Ink types
    Dye-based (C, M, Y)
    Pigment-based (K)
  • Non-printable area (cut-sheet)
    0.2 x 0.2 x 0.2 x 0.2 in
  • Guaranteed minimum line width
    0.0028 in (ISO/IEC 13660:2001(E))
  • Line accuracy
    ±0.1%
  • Maximum optical density (black)
    8 L* min/2.10 D

Paper handling

  • Finished output handling
    Sheet feed
    Roll feed
    Input tray
    Media bin
    Automatic cutter
  • Media types
    Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
  • Media sizes, standard (sheets, rolls)
    8.3 to 24-in wide sheets
    11 to 24-in rolls
  • Roll external diameter
    3.9 in
  • Media thickness
    Up to 11.8 mil

Connectivity

  • HP ePrint capability
    Yes
  • Printing path
    Windows and Mac printer drivers, Apple AirPrint, HP Print Service Plugin for Android, HP Print for Chrome for Chrome OS
  • Connectivity, standard
    Fast Ethernet (100Base-T)
    Hi-Speed USB 2.0 certified
    Wi-Fi
  • Print languages
    HP-GL/2, HP-RTL, JPEG, CALS G4

Power and operating requirements

  • Power consumption
    < 35 watts (printing), < 0.3 watts (standby)
  • Operating temperature range
    41 to 104°F
    (5 to 40°C )
  • Operating humidity range
    20 to 80% RH

What's included

  • Warranty
    One-year limited hardware warranty
  • What's in the box
    HP DesignJet T520 24-in Printer; printhead; introductory ink cartridges; printer stand; quick reference guide; setup poster; startup software; power cord
  • Software included
    HP Click
    HP DesignJet Utility for Mac and Windows
