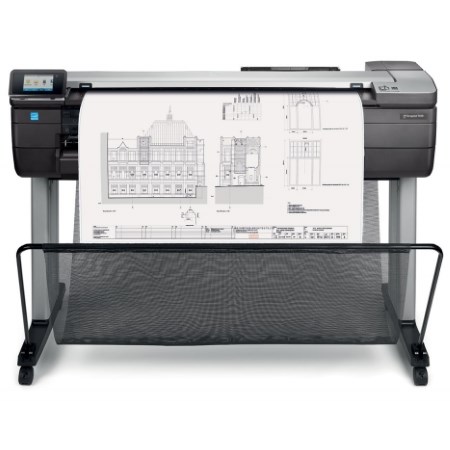

HP DesignJet T830 Multifunction Printer (36)

Product Number: F9A30A
SKU: F9A30A
In Stock
HP DesignJet T830 Multifunction Printer (36) F9A30A Click on Image to Enlarge
HP DesignJet T830 Multifunction Printer (36) F9A30A HP DesignJet T830 36-in Multifunction Printer T830 36-in MFP F9A30A

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

HP DesignJet T830 Multifunction Printer (36) F9A30A

The DesignJet T830 multifunction printer excels at architecture and construction applications. Print, scan, and copy allow you to communicate more effectively with no learning curve. Achieve precise lines up to an impressive 0.1% line accuracy, sharp detail up to 2400 dpi or down to 0.02mm line width. Reinforce design with strong legs for easy transport makes this a no-brainer for use at the job site.

HP DesignJet T830 36-in Multifunction Printer Specs:

Model Size

  • 36 in

Functions

  • Print, copy, scan

Speed Specifications

  • Print time line drawing (economode, D plain paper)
    25 sec/page
  • Print speed line drawing (economode, D plain paper)
    82 D prints per hour
  • Linear scan speed
    Up to 1.5 in/sec (color, 200 dpi); up to 4.5 in/sec (grayscale, 200 dpi)

Memory specifications

  • Memory
    1 GB
  • Internal storage
    None

Technical Specifications

  • Print quality (best)
    Color: Up to 2400 x 1200 optimized dpi
  • Print Technology
    HP Thermal Inkjet

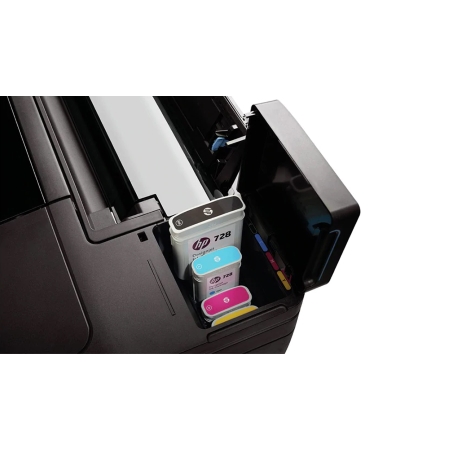

  • Number of print cartridges
    4 (cyan, magenta, yellow, matte black)
  • Ink types
    Dye-based (C, M, Y)
    Pigment-based (mK)
    Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
  • Non-printable area (cut-sheet)
    0.2 x 0.2 x 0.2 x 0.2 in
  • Guaranteed minimum line width
    0.0028 in (ISO/IEC 13660:2001(E))
  • Line accuracy
    ±0.1%
  • Maximum optical density (black)
    8 L* min/2.10 D
  • Scan resolution, optical
    Up to 600 dpi
  • Enhanced scanning resolution
    600 dpi
  • Scanner type
    Sheetfed, CIS (Contact Image Sensor)
  • Scan size, maximum
    36 x 109 in
  • Scan size, minimum
    5 x 5 in
  • Copy reduce / enlarge settings
    50 to 400%
  • Copies, maximum
    Up to 99 copies
  • Bit depth
    24-bit/8-bit

Paper handling

  • Finished output handling
    Sheet feed
    Roll feed
    Input tray
    Media bin
    Automatic cutter
  • Media types
    Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
  • Media sizes, standard (sheets, rolls)
    8.3 to 36-in wide sheets
    11 to 36-in rolls
  • Media sizes, custom
    Input tray: 8.3 x 11 to 13 x 19 in
    Manual feed: 13 x 19 to 36 x 74.7 in
    Roll: 11 to 36 in
  • Roll external diameter
    3.9 in
  • Media thickness
    Up to 11.8 mil

Connectivity

  • HP ePrint capability
    Yes
  • Printing path
    Windows and Mac printer drivers, Apple AirPrint, HP Print Service Plugin for Android, HP Print for Chrome app for Chrome OS
  • Connectivity, standard
    Gigabit Ethernet (1000Base-T)
    Wi-Fi 802.11b/g/n
    Wi-Fi Direct
    USB Type-A host port
  • Print languages
    TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL, URF

Power and operating requirements

  • Power consumption
    35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
  • Operating temperature range
    41 to 104°F
    (5 to 40°C )
  • Operating humidity range
    20 to 80% RH

Dimensions and weight

  • Minimum dimensions (W x D x H)
    55.2 x 24.8 x 45.5 in
  • Weight
    137.8 lb

What's included

  • Warranty
    One-year limited warranty. Warranty and support options vary by product, country and local legal requirements.
  • What's in the box
    HP DesignJet T830 36-in MFP; printhead; ink cartridges; printer stand; spindle; quick reference guide; setup poster; startup software; power cord; refeed preventers
  • Software included
    HP Click
    HP Utility for Mac and Windows
