Brands/HP/HP T Series Printers/
HP DesignJet T1700 Printer series HP DesignJet T1700 Printer series HP DesignJet T1700 Printer series HP DesignJet T1700 Printer series

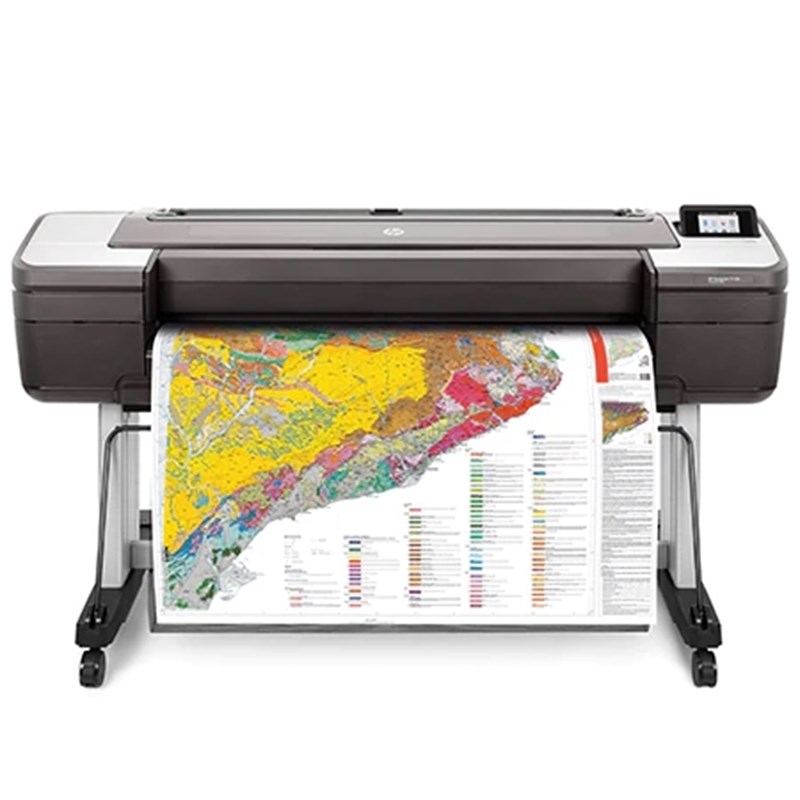

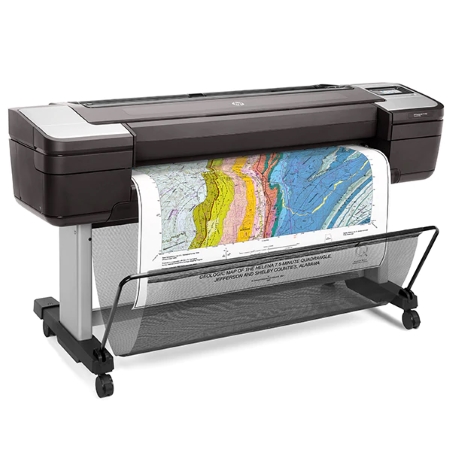

HP DesignJet T1700 Printer series
Click on Image to Enlarge

HP DesignJet T1700 Printer series (W6B55A, 1VD87A, W6B56A, 1VD88A)

Product Number: W6B55A, 1VD87A, W6B56A, 1VD88A
SKU: W6B55A
In Stock
Data Sheet PDF
HP DesignJet T1700 Printer series Click on Image to Enlarge
HP DesignJet T1700 Printer series HP DesignJet T1700 Printer series HP DesignJet T1700 Printer series HP DesignJet T1700 Printer series

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

HP DesignJet T1700 Printer series

  • HP DesignJet T1700 Printer W6B55A

  • HP DesignJet T1700 Postscript® Printer (1VD87A)

  • HP DesignJet T1700dr Printer (W6B56A)

  • HP DesignJet T1700dr Postscript® Printer (1VD88A)

With the 44-in HP DesignJet printer series, you can take CAD and GIS color reproduction to the next level. Featuring powerful security features, high productivity no matter the complexity of the file, bright and accurate colors, and dynamic security.



HP DesignJet T1700 Postscript® Printer 1VD87A Specs:

Model Size
  • 44 inches

Speed Specifications
  • Print time line drawing (economode, D plain paper)
    26 sec/page
  • Print speed line drawing (economode, D plain paper)
    116 D prints per hour

Memory Specifications
  • Memory
    128 GB (virtual)
  • Internal storage
    Standard, 500 GB Self Encrypted hard disk (AES-256 Encrypted)

Technical Specifications
  • Print quality (best)
    Color: Up to 2400 x 1200 optimized dpi
  • Print Technology
    HP Thermal Inkjet

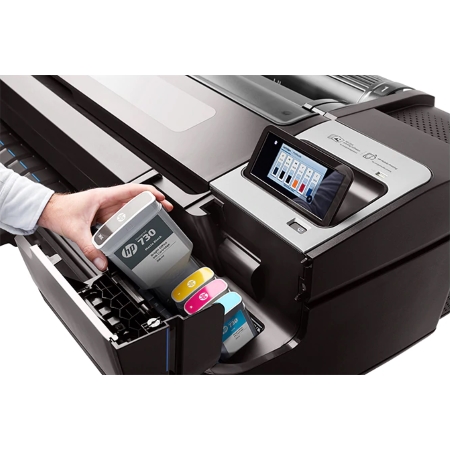

  • Number of print cartridges
    6 (cyan, gray, magenta, matte black, photo black, yellow)
  • Ink types
    Dye-based (C, G, M, pK, Y)
    Pigment-based (mK)
    Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
  • Non-printable area (cut-sheet)
    0.12 x 0.67 x 0.12 x 0.12 in
  • Guaranteed minimum line width
    0.0024 in (ISO/IEC 13660:2001(E))
  • Line accuracy
    ±0.1%
  • Maximum optical density (black)
    2.15 maximum black optical density (6 L*min)

Paper Handling
  • Finished output handling
    Sheet feed
    Roll feed
    Automatic horizontal cutter
  • Media types
    Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl)
  • Media sizes, standard (sheets, rolls)
    8.3 to 44 in wide
  • Media sizes, custom
    8.3 x 11 to 44 x 66 in
  • Roll external diameter
    5.3 in
  • Media thickness
    Up to 31.5 mil

Connectivity
  • HP ePrint capability
    Yes
  • Connectivity, standard
    Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab)
    USB Type-A host port
  • Print languages
    Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4

Power & Operating Requirements
  • Power consumption
    < 100 W (printing); < 24 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off)
  • Operating temperature range
    41 to 104°F
    (5 to 40°C )
  • Operating humidity range
    20 to 80% RH

Dimensions & Weight
  • Minimum dimensions (W x D x H)
    70.9 x 27.4 x 39.3 in
  • Weight
    159 lb

What's Included
  • Warranty
    One-year limited hardware warranty
  • What's in the box
    HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindle, setup poster, introductory information, warranty, power cords, label kits
  • Software included
    HP Click
    HP Utility for Mac and Windows
    HP WebJet Admin
    HP Embedded Web Server
    HP JetAdvantage Security Manager
    HP Partner Link
    HP MPS
