HP DesignJet T2530 36 in PostScript Multifunction Printer L2Y26A DesignJet T2530 MFP T2530 PostScript Multifunction Printer L2Y26A
Click on Image to Enlarge

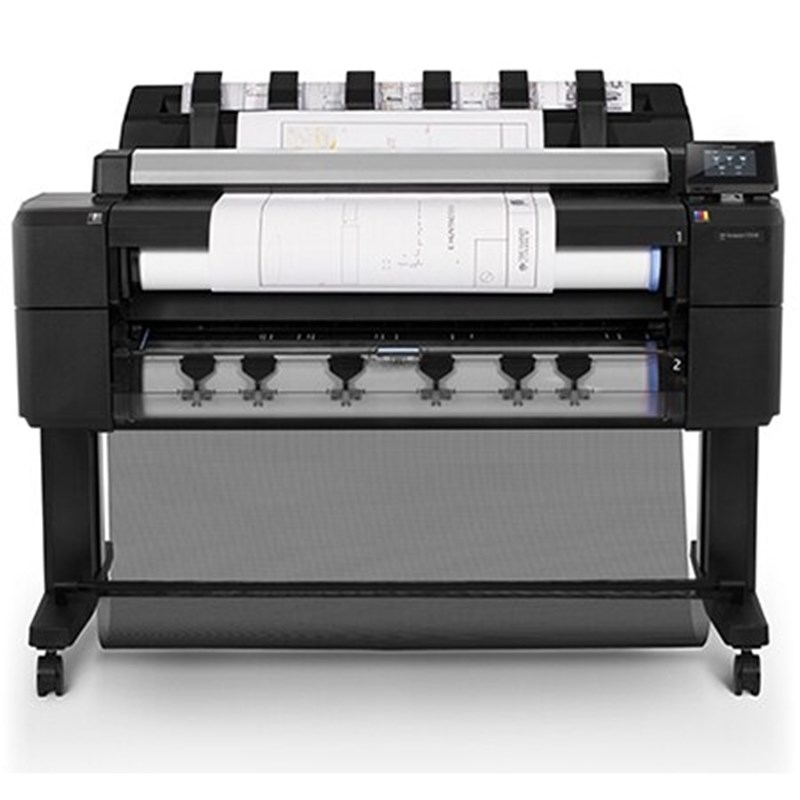

HP DesignJet T2530 PostScript Multifunction Printer

Product Number: L2Y26A
In Stock
HP DesignJet T2530 36 in PostScript Multifunction Printer L2Y26A Click on Image to Enlarge
HP DesignJet T2530 36 in PostScript Multifunction Printer L2Y26A DesignJet T2530 MFP T2530 PostScript Multifunction Printer L2Y26A

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

HP DesignJet T2530 PostScript Multifunction Printer L2Y26A

The HP DesignJet T2530 has 6 different inks to use for precise colors and includes gray and photo black. Has a sharp and accurate printing of Cad drawing with 2400 dpi. The compatibility with Adobe Postscript makes it easier for your prints to be made at a high resolution. This printer is very speed-efficient and can print A1/D-size prints in 21 seconds, and the ability to print 120 A1/D pages per hour.

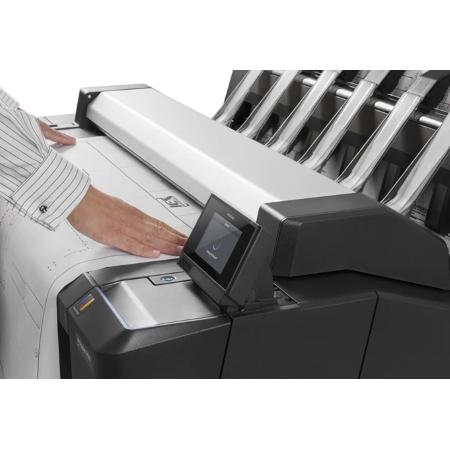

This printer conveniently has only one control panel for all your needs including; printing, scanning, and copying for easy operation. Whether using roll or sheet media there is an output tray that will neatly collate your prints. This printer has 2 roll ability for two different sizes and/or media. integrated 50-page output stacking tray conveniently delivers flat, collated prints. The HP DesignJet T2530 is compatible with HP Mobile printing which enables you to print from anywhere with the application downloaded.


HP DesignJet T2530 Postscript Printer Specs

Model Size

  • 36 in


  • Print, copy, scan

Speed Specifications

  • Print time line drawing (economode, D plain paper)
    21 sec/page
  • Print speed line drawing (economode, D plain paper)
    120 D prints per hour
  • Linear scan speed
    Up to 2.5 in/sec (color, 200 dpi); up to 7.5 in/sec (grayscale, 200 dpi)

Memory Specifications

  • Memory
    128 GB (file processing)
  • Internal storage
    Standard, 500 GB

Technical Specifications

  • Print quality (best)
    Color: Up to 2400 x 1200 optimized dpi
  • Print Technology
    HP Thermal Inkjet
  • Number of print cartridges
    6 (cyan, gray, magenta, matte black, photo black, yellow)
  • Ink types
    Dye-based (C, G, M, pK, Y)
    Pigment-based (mK)
  • Non-printable area (cut-sheet)
    0.1 x 0.87 x 0.1 x 0.1 in
  • Guaranteed minimum line width
    0.0028 in (ISO/IEC 13660:2001(E))
  • Line accuracy
  • Maximum optical density (black)
    2.15 maximum black optical density (6 L*min)
  • Scan resolution, optical
    Up to 600 dpi
  • Scanner type
    Sheetfed, CIS (Contact Image Sensor)
  • Scan size, maximum
    36 x 315 in (JPEG); 36 x 197 in (PDF); 36 x 472 in (TIFF) (Files no bigger than 2 GB); 24 x 709 in (TIFF) (Files no bigger than 2 GB)
  • Copy reduce / enlarge settings
    25 to 400%
  • Copies, maximum
    Up to 99 copies

Paper Handling

  • Finished output handling
    Input: two automatic front-loading roll feeds
    Smart roll switching
    Sheet feed
    Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity)
    Media bin
    Automatic cutter
    Scanner: straight-through scan paper path for sheet and cardboard originals
  • Media types
    Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)
  • Media sizes, standard (sheets, rolls)
    8.3 to 36 in wide
    11 to 36-in rolls
  • Media sizes, custom
    8.3 x 11 to 36 x 48 in
  • Roll external diameter
    5.5 in
  • Media thickness
    Up to 19.7 mil


  • HP ePrint capability
  • Printing path
    Direct printing from USB flash drive (Printing PDF files from USB Flash Drive only available with HP Designjet T2530 PostScript Multifunction Printer), email printing, HP driver for Windows, HP driver for Mac OS X, HP Print Service for Android, Apple AirPrint driver, HP Print for Chrome OS
  • Connectivity, standard
    Gigabit Ethernet (1000Base-T)
  • Print languages
    Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF

Power & Operating Requirements

  • Power consumption
    120 watts (printing/scanning); 1.3 watts (5 watts with embedded Digital Front End) (sleep)
  • Operating temperature range
    41 to 104°F
    (5 to 40°C )
  • Operating humidity range
    20 to 80% RH

Dimensions and Weight

  • Minimum dimensions (W x D x H)
    55.1 x 36.1 x 43.7 in
  • Weight
    245 lb

What's Included

  • Warranty
    One-year limited hardware warranty
  • What's in the box
    HP DesignJet T2530 Multifunction Printer; printhead; introductory ink cartridges; stacking tray; printer stand and media bin; spindles; quick reference guide; setup poster; startup software; power cord
