HP DesignJet T3500 36-in Production Multifunction Printer B9E24A T3500 Production Multifunction Printer B9E24A T3500 Production MFP B9E24A
Click on Image to Enlarge

HP DesignJet T3500 Production MFP

Product Number: B9E24A
In Stock
HP DesignJet T3500 36-in Production Multifunction Printer B9E24A Click on Image to Enlarge
HP DesignJet T3500 36-in Production Multifunction Printer B9E24A T3500 Production Multifunction Printer B9E24A T3500 Production MFP B9E24A

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

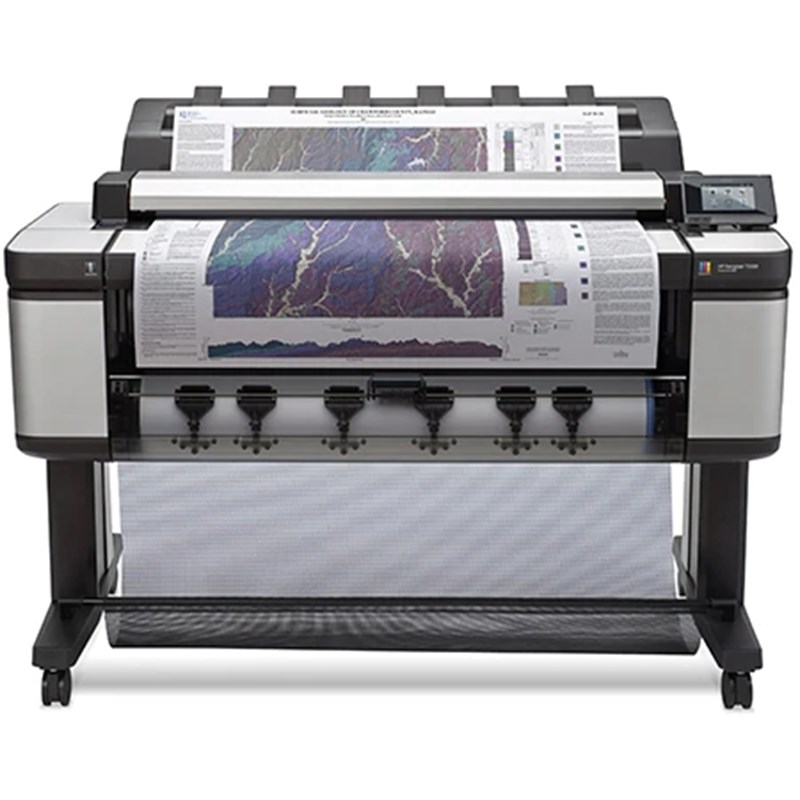

HP DesignJet T3500 Production Multifunction Printer B9E24A

The HP T3500 is the most productive and cost-effective HP DesignJet MFP I n full color. The HP DesignJet T3500 is built for rigorous technological demands and will meet all your black-and-white or color needs, while it also allows for an inexpensive cost of operation, copying blueprints at an advanced matter, and working solely without assistance. This printer takes 6 different ink cartridges which can use high volume 300ml ink cartridges.

The HP DesignJet T3500 has a printing ability of 1 D-Sized page every 21 seconds and 120 D sized pages per hour. This printer comes with a dual front-loading roll, which can hold anywhere from 11 to 36-in rolls. Also, it can print on sheet media neatly with an integrated 100-page stacker that holds a paper length of 8.3 to 36-in single wide sheets. You can rely on the robust design to fulfill the most demanding jobs quickly and efficiently. The HP DesignJet T3500 requires zero warm-up time so you can print out your first page right away with its use of ultra-fast processing.


HP DesignJet T3500 Production MFP Specs

Model Size

  • 36 in


  • Print, copy, scan

Speed Specifications

  • Print time line drawing (economode, D plain paper)
    21 sec/page
  • Print speed line drawing (economode, D plain paper)
    120 D prints per hour
  • Linear scan speed
    Up to 2.5 in/sec (color, 200 dpi); up to 7.5 in/sec (grayscale, 200 dpi)

Memory Specifications

  • Memory
    Printer: 128 GB (virtual)
  • Internal storage
    Standard, 500 GB (AES-256 encrypted, FIPS 140-2 Level 2 certified)

Technical Specifications

  • Print quality (best)
    Color: Up to 2400 x 1200 optimized dpi
  • Print Technology
    HP Thermal Inkjet

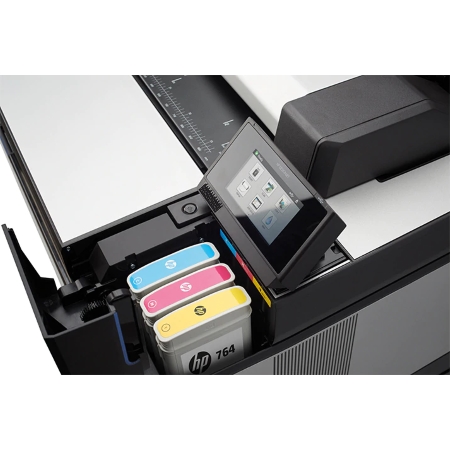

  • Number of print cartridges
    6 (cyan, gray, magenta, matte black, photo black, yellow)
  • Ink types
    Dye-based (C, G, M, pK, Y)
    Pigment-based (mK)
  • Non-printable area (cut-sheet)
    0.12 x 0.87 x 0.12 x 0.12 in
  • Guaranteed minimum line width
    0.0028 in (ISO/IEC 13660:2001(E))
  • Line accuracy
  • Scan resolution, hardware
    Up to 600 x 600 dpi
  • Scan quality color (best)
    Color: 600 x 600 dpi
  • Scan resolution, optical
    Up to 600 dpi
  • Scanner type
    Sheetfed, CIS (Contact Image Sensor)
  • Scan size, maximum
    36 x 315 in (JPEG); 24 x 590.5 in (TIFF); 36 x 197 in (PDF with optional PostScript Upgrade)
  • Scan size, minimum
    8.2 x 11.6 in
  • Copy reduce / enlarge settings
    25 to 400%; at 1% increment
  • Copies, maximum
    Up to 99 copies

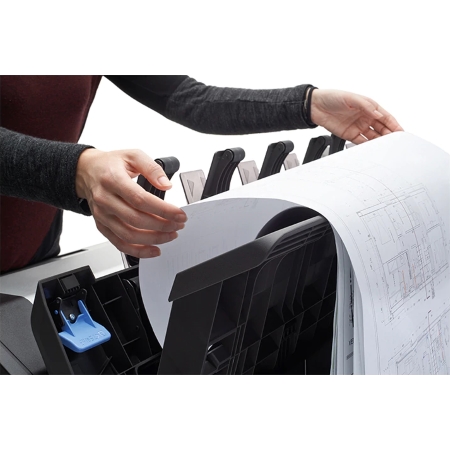

Paper Handling

  • Finished output handling
    Input: two automatic front-loading roll feeds smart roll switching
    Rolls up to 200 m (650 ft) long each and 180 mm (7.1 in) of diameter sheet feed
    Output: integrated output stacker (from A4/A to A0/E, with up to 100 A1/D-size capacity) media bin
    Automatic cutter
    Scanner: straight-through scan paper path for sheet and cardboard originals
  • Media types
    Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)
  • Media sizes, standard (sheets, rolls)
    8.3 to 36-in wide sheets
    11 to 36-in rolls
  • Media sizes, custom
    8.3 x 11 to 36 x 48 in
  • Roll external diameter
    7 in
  • Media thickness
    Up to 19.7 mil


  • HP ePrint capability
  • Printing path
    HP SmartStream software for HP DesignJet printers (optional), printer driver, HP Embedded Web Server, direct printing from USB flash drive, email printing
  • Connectivity, standard
    Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, FTP, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100, 9101, 9102), LPD, IPP, WS print, NTLM, NTLM v2, SSL/TLS, 802.1X authentication (WEP, WPA, WPA2, LEAP, PEAP, EAP-TLS)
  • Print languages

Power & Operating Requirements

  • Power consumption
    < 120 watts (printing); < 2 watts (< 7 watts with embedded Digital Front End) (sleep); 0 watts (off)
  • Energy efficiency
    ENERGY STAR® qualified, EPEAT® Bronze
  • Operating temperature range
    41 to 104°F
    (5 to 40°C )
  • Operating humidity range
    20 to 80% RH

Dimensions & Weight

  • Minimum dimensions (W x D x H)
    55.1 x 30.9 x 43.7 in
  • Weight
    251 lb

What's Included

  • Warranty
    Three-year limited hardware warranty
  • What's in the box
    HP DesignJet T3500 Production Multifunction Printer; printhead; introductory ink cartridges; stacker; scanner calibration sheet; printer stand and media bin; spindles; 3-in spindle adapter kit (x2); quick reference guide; setup poster; startup software; power cord
  • Software included
    HP Utility for Mac and HP DesignJet Utility for Windows
