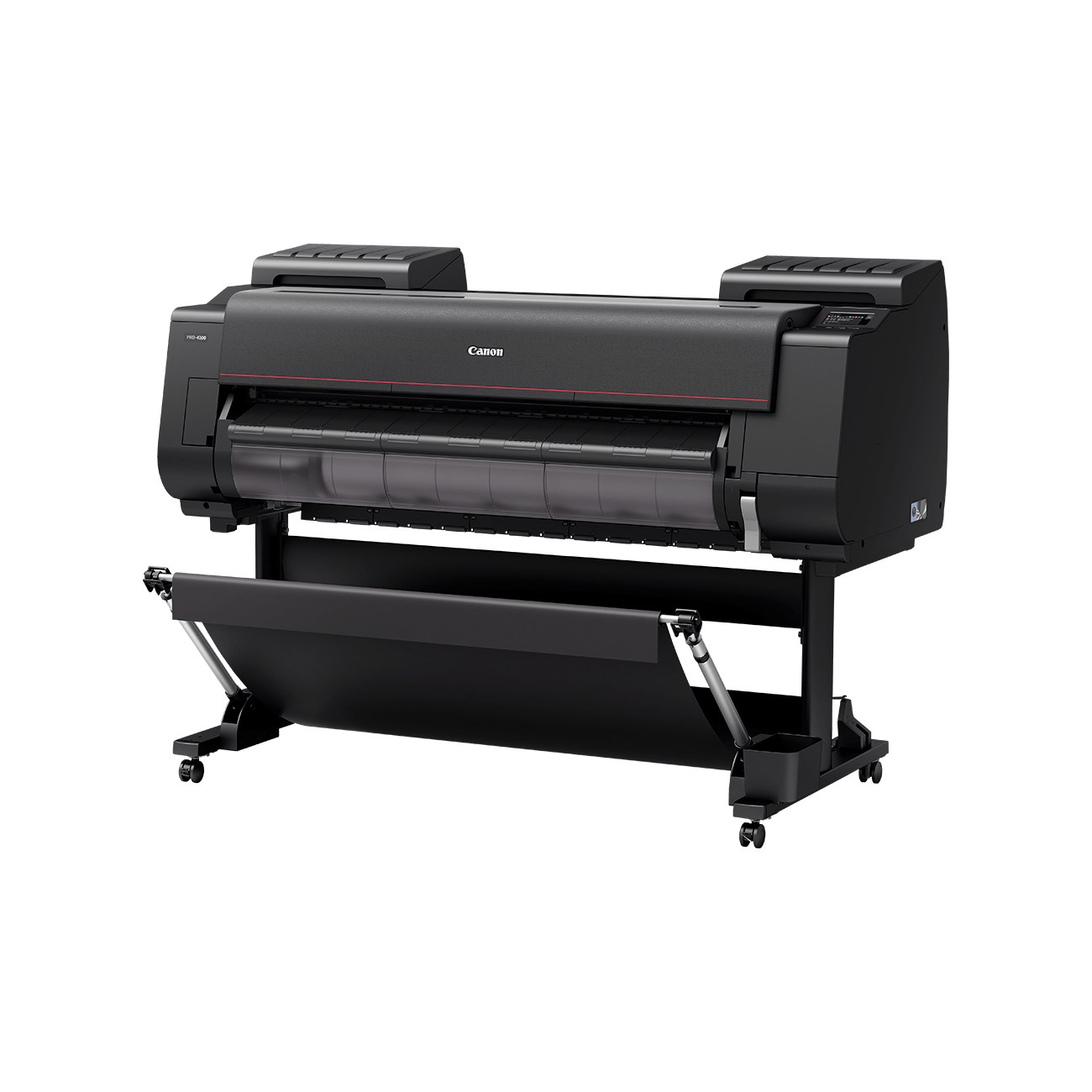

Canon imagePROGRAF Pro-4100 Large Format Printer

Product Number: 3869C002AA
$5,995.00 In Stock
Canon imagePROGRAF Pro-4100 Large Format Printer Click on Image to Enlarge
Canon imagePROGRAF Pro-4100 Large Format Printer Canon imagePROGRAF Pro-4100 44 inch Large Format Printer Canon imagePROGRAF Pro-4100 44 inch Large Format Printer

QTY:

Get the best price:

Call Live Chat E-Mail

2020 Canon iamgePROGRAF PRO-6100 End-User Rebate

imagePROGRAF PRO Series
Large-Format Printer
Rebate Amount
PRO-6100 $1,000
PRO-4100 $800
PRO-2100 $300

Canon imagePROGRAF Pro-4100 Large Format Printer

Building on the success of the previous PRO Series, these new printers feature a number of new innovations that will improve the end-user experience. Users for both the 8-color S-series and the flagship 11-color printers will benefit from the “First of its kind” intelligent automatic media feeding technology Canon built into these devices. Innovation included in these models that will help users from the Production printing market to the Fine Art user include:

Features

  • Intelligent media handling
  • Enhanced security features
  • Borderless printing on all media widths
  • Operational design improvements
  • Creative & Workflow software

Users of both the 8-color & 11-color models will be able to take advantage of the unique advantages these printers bring to the aqueous inkjet market. The 8-color series aimed at print service providers, print-for-pays, signage, corporate centralized reproduction departments (CRDs), and other higher volume users, will benefit from the increased speed compared to the previous generation. All of the new models have the ability to print borderless on all standard and custom widths, a feature other competitor’s printer’s lack. Built with an intuitive 4.3-inch electrostatic touch-screen operation panel, the same technology used in smartphones, this series provides users with better operability and visibility.

The time saving intelligent media loading system allows the operator to move away after placing the roll in the printer without feeding the roll paper or selecting the media type. The media is automatically fed and transported over the platen, the multi-sensor built into the printer measures the surface reflectance and media thickness to identify the media type. These two measurements are used together with the database of pre-registered media in the printer and the loaded roll media type is determined by a learning function that uses the printer usage history data. The accuracy of the automatic media type detection is enhanced by repeated use of the printer.

The standard, built-in Multi-sensor enables easy and economical color calibration for consistent color reproduction from print to print as well as from printer to printer, a feature you need to pay extra for with the competition. With the Device Management Console software, users can realize centralized status and color management of multiple printers. Additionally, the series is developed with advanced security features, including support of secure PIN printing to protect data and increased administrative control of end-user printing. Through these new solutions, users now have the ability to turn off the Chroma Optimizer per media type, allowing more creative control of the printing process.

The new PRO Series also supports a wide variety of software as standard to assist simple, efficient printing of photos, posters, graphics, and more to increase the efficiency of large-format printing environments. Professional Print & Layout newly supports auto nesting and achieves an efficient workflow for printing photos with high print quality. Free available software packages include:

  • Professional Print & Layout
  • Direct Print & Share
  • Accounting Manager (PC Only)
  • PosterArtist Lite (PC Only)
  • Printer Plug-in for Microsoft® Office
  • Media Configuration Tool



Technology

Printer Type

  • 12 Color 44"/1118mm

Print Technology

  • Canon Bubblejet on Demand 12 colors integrated type (12 chips per print head x 1 print head)

Print Resolution

  • 2,400 x 1200 dpi

Number of Nozzles

  • 18,432 nozzles (1536 nozzles x 12 color)

Line Accuracy

  • ±0.1% or less
  • User adjustments necessary. Printing environment and media must match those used for the adjustments.
  • CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only

Nozzle Pitch

  • 600 dpi x 2 includes Non-firing nozzle detection and compensation system

Ink Droplet Size

  • Minimum 4 pl per color

Ink Capacity

  • Sales Ink: 160ml/330ml/700ml
  • Bundled Starter Ink: 330ml

Ink Type

  • Pigment inks - Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray, Photo Gray, Red, Blue, Chroma Optimiser

OS Compatibility

  • Microsoft Windows: 32 Bit, Vista, 7,8, 8.1,10
  • Server 2008, 64 Bit: Vista, 7,8, 8.1,10,
  • Server 2008/R2, Server 2012/R2, Windows Server 2019
  • Apple Macintosh: OS X 10.10.5 ~ OS X 10.11, macOS 10.12 ~ macOS 10.14

Printer Languages

  • SG Raster (Swift Graphic Raster), PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)

Standard Interfaces

  • USB A Port: USB Memory Direct Print for JPEG/PDF files
  • USB B Port: Built-in Hi-Speed USB 2.0
  • Ethernet: 10/100/1000 base-T
  • Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN

Media Handling

Media Feed and Output

  • Upper Roll Paper: One Roll, Front-loading, Front Output
  • Lower Roll Paper: One Roll, Front-loading, Front Output
  • Cut Sheet: Front-loading, Front Output (Manual feed using media locking lever)

Media Width

  • Roll paper: 152.4 - 1118mm
  • Cut sheet: 152.4 - 1118mm

Media Thickness

  • Roll/Cut: 0.07 - 0.8 mm

Minimum Printable Length

  • 203.2 mm

Maximum Printable Length

  • Roll paper: 18 m (Varies according to the OS and application)
  • Cut sheet: 2133.6mm

Maximum Media Roll Diameter

  • 170 mm

Media Core Size

  • Internal diameter of roll core: 2"/3"

Margins Recommended Area

  • Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
  • Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm

Margins Printable Area

  • Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
  • Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm
  • Cut sheet: Top: 3 mm, Bottom: 20 mm, Side: 3 mm

Media Feed Capacity

  • Roll Paper: Two rolls. Automatic switching is possible.
  • Cut Sheet: 1 sheet

Media Take-Up Roll Unit

  • Dual direction roll take-up unit allowing print surface to be wound inside or outside of the roll

Borderless Printing Width (Roll Only)

  • 515mm(JIS B2), 728mm(JIS B1), 1030mm(JIS B0), 594mm(ISO A1), 841mm(ISO A0), 10", 14", 17", 24", 36", 42", 44", 257mm(JIS B4)*, 297mm(ISO A3)*, 329mm(ISO A3+)*, 420mm(ISO A2)*,6'', 8"*, 12'', 16"*, 20'', 22'', 30"*, 300mm*, 500mm, 600mm 800mm, 1000mm and custom roll width (152.4~1118mm)
*Some environmental conditions may not produce the desired result

Maximum Number of Delivered Prints

  • Standard position: 1 sheet
  • Flat position: A2 landscape, glossy paper less than 10 sheets, Coated paper less than 20 sheets (excludes strong curled condition)

What's Included

What's in the Box? Printer, 1 print head, 3-inch paper core attachment, Power cable, 1 set of starter ink tanks, Set up guide, Safety/Standard Environment leaflet, User software CD-ROM (Win), Poster Artist Lite CD-ROM, EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet
Software Included imagePROGRAF PRO Printer Driver, Print Plug-In for Office, Quick Utility Toolbox and PosterArtist Lite
