Canon imagePROGRAF TZ Large Format Printer Canon imagePROGRAF TZ-30000 plotter printer
Click on Image to Enlarge

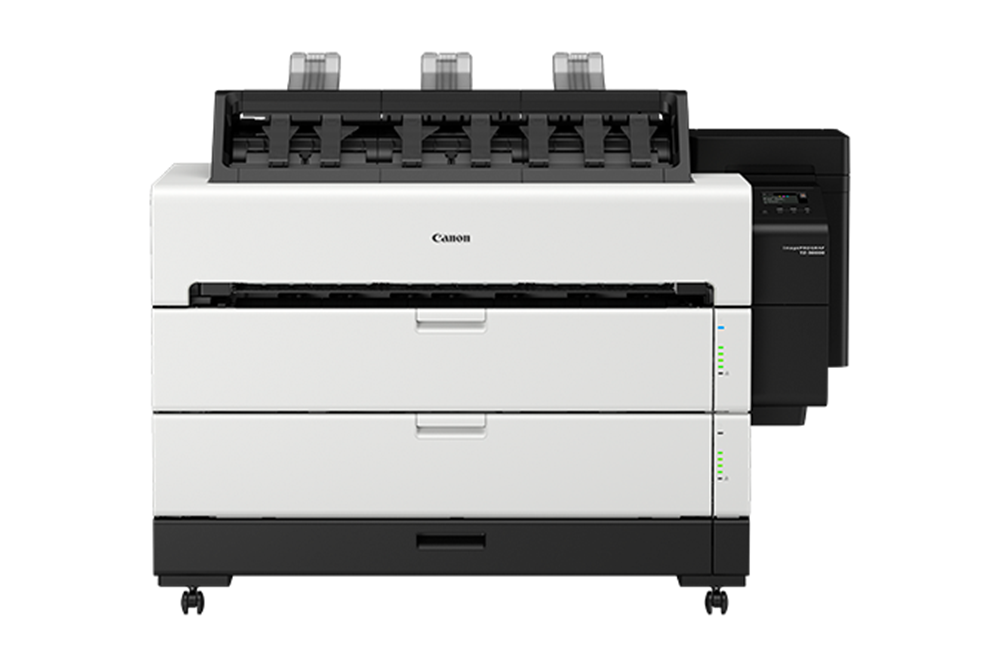

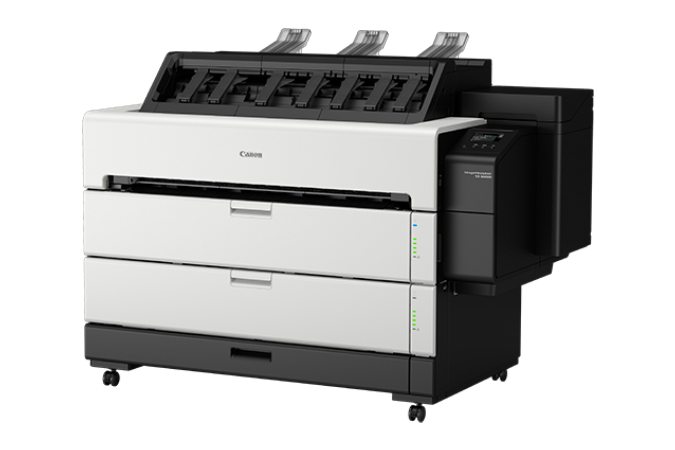

Canon imagePROGRAF TZ-30000 Large Format Printer

Product Number: 4604C002AA
SKU: TZ-30000
In Stock
Canon imagePROGRAF TZ Large Format Printer Click on Image to Enlarge
Canon imagePROGRAF TZ Large Format Printer Canon imagePROGRAF TZ-30000 plotter printer

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TZ-30000 36-inch Printer

The new imagePROGRAF TZ-30000 Large Format Printer is Canon's fastest offering to the world of CAD, engineering & more. The TZ-30000 prints up to 4 D-sized prints per minute and 244 D-sized prints per hour. With parallel processing technology and increased cutter speeds, the first print can be out in just 19 seconds. The TZ Output Stacker, combined with Canon's airflow system reduces paper jams and ensures privacy with face-down delivery.

A 5-color, 36” large format printer for maximum efficiency.

Maneuver with ease using the TZ's 4.3" LCD touch screen, perfect for large-scale operations and high-volume print jobs.

We accept trade-ins for Canon iPF printers. Call 414-321-1422 for details.

Canon imagePROGRAF TZ-30000 at a glance:

  • 500 GB hard drive
  • Prints 4 D-sized drawings a minute
  • Dual roll media system
  • Wireless printing capable
  • 6-channel PF-06 print head

Canon imagePROGRAF TZ-30000

The TZ-30000 is the newest addition to Canon's fleet of high-power printers, and the fastest. Outfitted with the 6-channel PF-06 Print Head, the TZ hits the mark every time with clean lines. Small details like the foldable catch basket ensure smooth transitions from use to storage. Don't let big print jobs weigh on your computer, the TZ-30000 has a built-in 500 GB hard drive to store and retrieve data.

Canon imagePROGRAF TZ-30000 Security Features

We're excited to carry the new line of Canon printers designed and built with advanced technology, including:

Secure Communication

  • 802.1x Authentication
  • SNMPv3
  • SSL/TLS
  • IPSec

Canon imagePROGRAF TZ-30000 Functionality Restrictions

  • Panel Lock by Remote UI
  • Remote UI Multilevel
  • Hide IP From Panel
  • Panel Access Control
  • Job Storage

Canon imagePROGRAF TZ-30000 Secure Storage

  • Self-Encrypting Hard Disk
  • Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)

The following functions can be disabled in administrator mode:

  • Direct USB Thumb Drive Printing
  • Internet Connection
  • FTP and Telnet communication protocols
  • Job Log Look-up

Canon imagePROGRAF TZ-30000 High-Performance LUCIA TD Pigment Inks

The new TZ-30000 and TZ series printers operate with the 5-color LUCIA TD pigment ink set, producing the finest lines and sharpest text on any paper. Using this pigment ink with the TZ unlocks its full capabilities. Print precise drawings to GIS and perspective drawings or posters. Purchase ink in 330 ml and 700 ml tanks to match your needs.

Canon imagePROGRAF TZ-30000 Sub Ink Tank System

No more wasting ink with the Canon's Sub Ink Tank, the TZ-30000 will use every last drop! If a tank is emptied mid-print, you can replace it without interrupting the job.

View the Canon Plotter Printers Guide.

Shop Canon Plotters online at WAB Paper Supply for all your business printing solutions.

Canon imagePROGRAF TZ-30000 Specs

Printer Type

  • 5-color 36-inch printer

Number of Nozzles

  • Number of Nozzles Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

Print Resolution (up to)

  • 2,400 x 1,200 dpi (max)

OS Compatibility

  • Windows® 7, 8.1, 10 (32/64bit)
  • Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
  • Macintosh® (OSX 10.12.6 and later)

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 330ml or 770ml per color

Ink Type

  • Pigment Ink

Color Set

  • Dye: Cyan, Magenta, Yellow, Black
  • Pigment: Matte Black

Buffer RAM

  • 128 GB (Virtual)
  • 2 GB (Physical)

Media Width

  • Cut Sheet: 8"- 36"
  • Roll Feed: 8" - 36"

Media Thickness

  • 0.07-0.8mm (2.8-31.4mil)

Maximum Roll Print Length

  • Roll Feed: 59'

Maximum Media Roll Diameter

  • 6.9"

Borderless Printing Width

  • All sizes

Paper Feed Method

  • Roll Feed: Two Roll, Front-loading
  • Cut Sheet: Front-loading

Languages

  • SGRaster, HPGL/2, HP-RTL, PDF, JPEG

Noise Level Approx

  • Operation: 52 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 7.0 Bels or less

Physical Dimensions

  • 47" x 6" x 38" (Main unit, paper output support, top output guide)

Weight

  • Approximately 456 lbs

Power Source

  • AC-100-240V (50-60Hz)

Power Consumption

  • Maximum: 157W or less
  • Standby: 2.0W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-replaceable items

  • Print Head: PF-06
  • Maintenance Cartridge: MC-30
  • Ink Tanks: PFI-340/PFI-740

Software Available

  • Accounting Manager
  • Canon Print Service
  • Device Management Console
  • Direct Print Plus
  • Free Layout Plus
  • Canon Printer Driver
  • Media Configuration Tool
  • PosterArtist Lite for Windows
  • Optimized Driver for AutoCAD
  • CPP Publisher Select
  • CPP Driver Select
