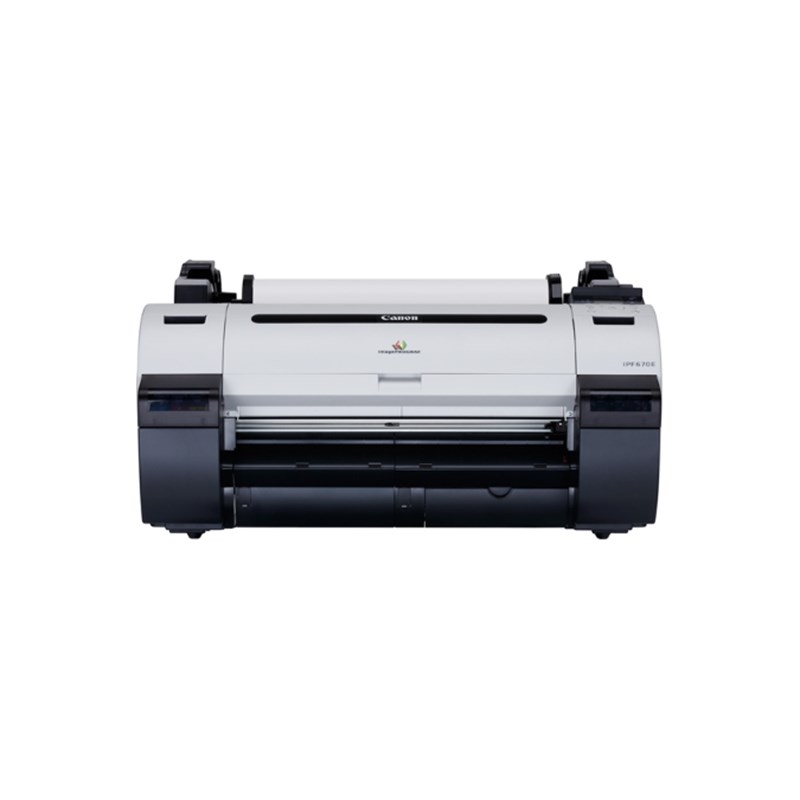

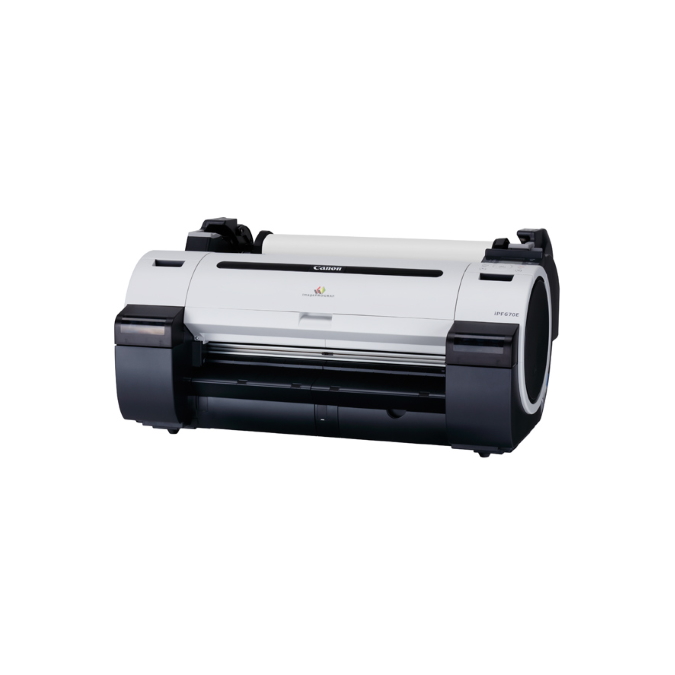

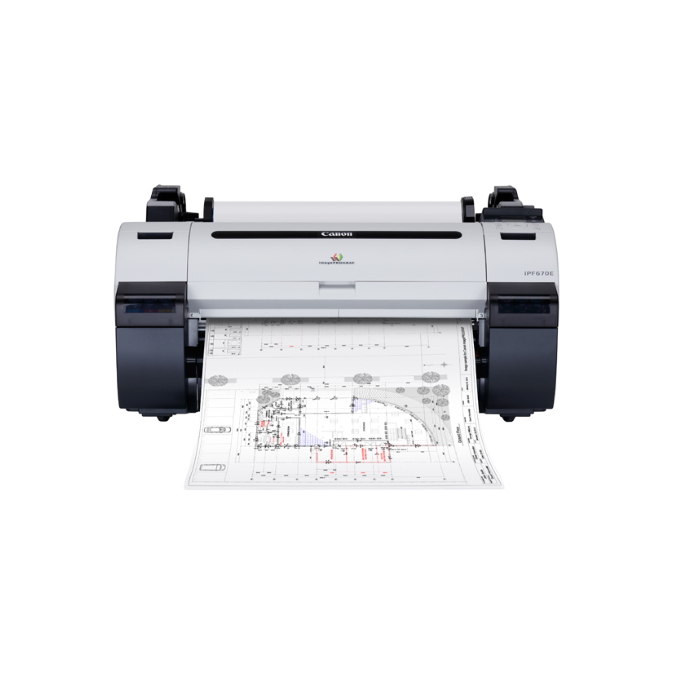

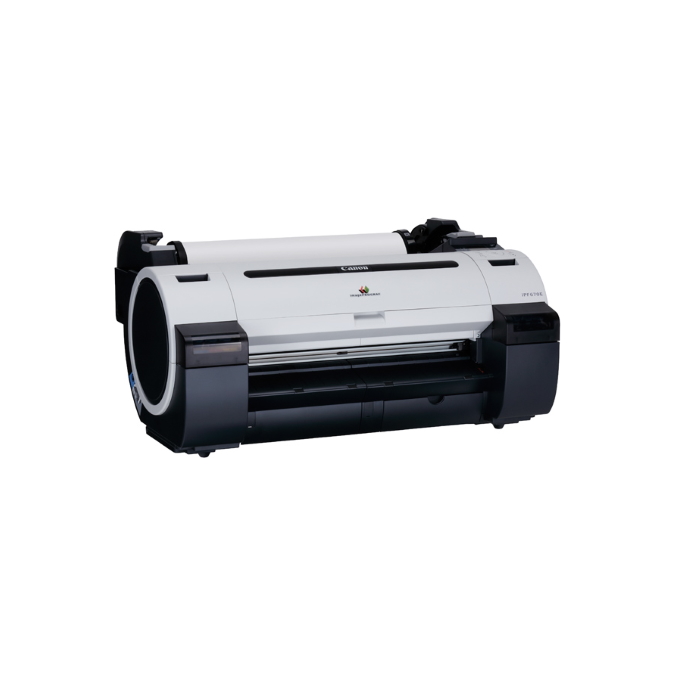

imagePROGRAF iPF670E

Product Number: 2162C002AA
SKU: ipf670e
In Stock
Canon imagePROGRAF iPF670E large format printer Click on Image to Enlarge
Canon imagePROGRAF iPF670E large format printer Canon imagePROGRAF iPF670E large format plotter Canon imagePROGRAF iPF670E plotter Canon imagePROGRAF iPF670E printer

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

Canon’s imagePROGRAF iPF670E is a versatile, entry-level large format printer (24”) designed for a wide range of color and black and white printing in small office environments that don’t need all the extra features of Canon’s premium 5-color models.

Capabilities include CAD/GIS documents, posters and POP displays, and office documents, and with Canon’s PosterArtist Lite poster creation software it’s easy to create custom signage with vibrant color and precise lines. Canon’s Direct Print & Share cloud-based portal allows for files to be uploaded, downloaded, shared and printed from nearly anywhere in the world.

Canon iPF670E at a glance:

  • 24-inch Printer
  • 5-Color Dye/Pigment Reactive Ink Set (ships with 540ml of ink)
  • 7X the amount of starter ink than comparable competitor models
  • Sub-Ink Tank System & Hot Swap Ink Tanks
  • Fast Printing - currently over 40% faster than its competitor models
  • Non-firing Nozzle Detection


Call for Price on the Canon IPF670E 24-inch Printer


Buy Canon imagePROGRAF iPF670 plotter printer


Canon imagePROGRAF iPF670 24" Printer Specifications:

Printer Type

  • 5-Color 24-inch Printer Plotter

Number of Nozzles

  • Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

Print Resolution (Up to)

  • 2,400 x 1,200 dpi (Max)

OS Compatibility

  • Windows (Vista/7/8.1/10)
  • Macintosh OSX 10.7.5-10.11X)

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX

Ink Droplet Size

  • 4 picoliter max

Ink Capacity

  • 90ml per color

Ink Droplet Size

  • Dye/Pigment Reactive Ink

Color Set

  • Dye: Cyan, Magenta, Yellow, Black
  • Pigment: Matte Black

Buffer Ram

  •  256 MB RAM

Media Width

  • Cut Sheet: 8"-24" (203.2mm-610mm)
  • Roll Feed: 10"-24" (254mm-610mm)

Media Thickness

  • 0.07-0.8mm (2.8-31.4mil)

Maximum Roll Print Length

  • Roll Feed: 59' (18 meters)
  • Cut Sheet: 63" (1.6 meters)

Maximum Media Roll Diameter

  • 5.9" (150mm)

Borderless Printing Width

  • 10, B4, A3, 14, A2, 17, B2 (20.28/515 mm), A1 (23.38/594mm), 24"

Paper Feed Method

  • Roll Feed: One Roll, Top-loading, Front output
  • Cut Sheet: One sheet, Top loading, Front output


  • GARO (Canon Proprietary)

Noise Level Approx

  • Operation: 47 dB (A)
  • Standby: 35 dB (A) or less
  • Acoustic Power: 6.5 Bels

Physical Dimensions

  • 42"H x 39"W x 34"D (When basket is open)
  • 42"H x 39"W x 28"D (When basket is closed)
  • 20"H x 39"W x 27"D (Without stand)


  • Approximately 113 lb. with stand
  • Approximately 92 lb. without stand
  • Box Dimensions & Weight:
  • 42"H x 44"W x 33"D, 196 lb. with stand
  • 30"H x 44"W x 33"D, 158 lb. without stand

Power Source

  • AC-100-240V (50-60Hz)

Power Consumption

  • Maximum: 140W or less
  • Standby: 5W or less
  • Power Off: .5W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-Replaceable Items

  • Print Head: PF-04
  • Maintenance Cartridge: MC-10
  • Ink Tanks: PFI-107 (90ml: C, M, Y, BK, MBK)

Software Included

  • Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility, Poster Artist Lite (PC Only), Print Plug-In for Microsoft Word/Excel/PowerPoint (PC Only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD

Canon imagePROGRAF iPF670 Color Printer Plotter


Shop all iPF670E printable media at WAB Paper Supply.


PFI-107 Ink Tanks: (PFI107BK, PFI107MBK, PFI107C PFI107Y, PFI107M)
