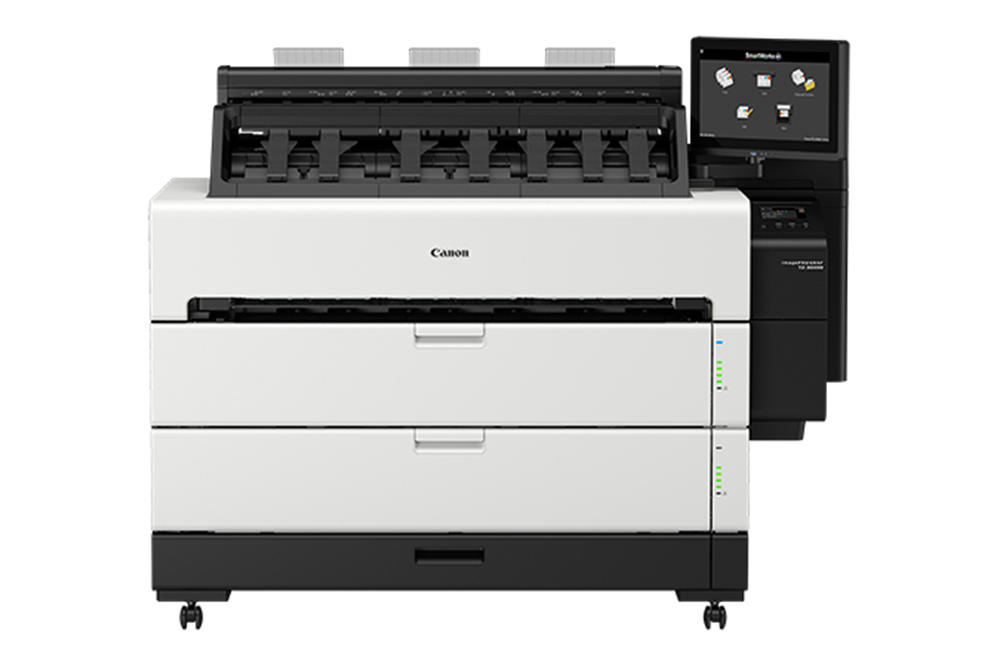

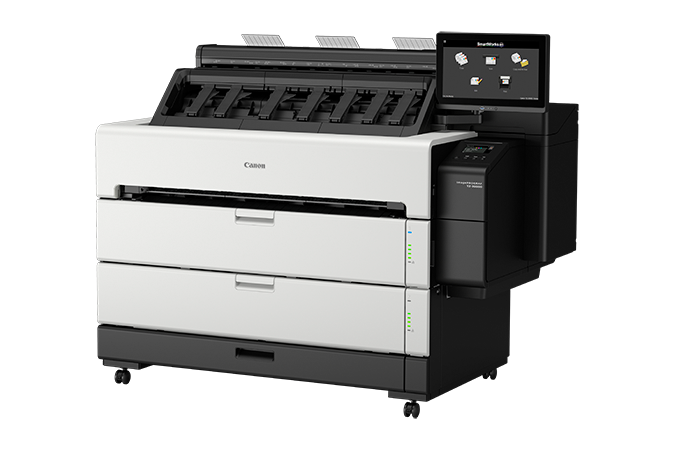

Canon imagePROGRAF TZ-30000 MFP Z36 Large Format Printer

Product Number: 5517C001AA
In Stock
Canon imagePROGRAF TZ-30000 MFP Z36 Large Format Printer Click on Image to Enlarge
Canon imagePROGRAF TZ-30000 MFP Z36 Large Format Printer Canon imagePROGRAF TZ-30000 MFP Z36 Plotter Printer

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TZ-30000 MFP Z36 Printer

The imagePROGRAF TZ-30000 MFP Z36 doesn't just print at incredible speeds. Multifunction isn't just a title. The Z36 scanner contains an AIO controller to maximize output and manage files, media information, user preferences and printer maintenance. While other scanners fall short in the shadows, the Z36 maintains accurate detail replication and consistent color sharpness. The updated SmartWorks MFP software enables efficient "scan-it-once" jobs.

A 5-color, 36” large format printer and scanner perfect for CAD, engineering and more.

Canon paired its fastest printer with the smart technology scanner system to create an unstoppable force in any industry.

We accept trade-ins for Canon iPF printers. Call 414-321-1422 for details.

Canon imagePROGRAF TZ-30000 MFP Z36 at a glance:

  • TZ-30000 36" Printer
  • Z36 Scanner
  • Direct USB thumb drive printing
  • SmartWorks MFP software
  • Dual roll media system
  • Top output stacker

Canon imagePROGRAF TZ-30000 MFP Z36


Canon imagePROGRAF TZ-30000 MFP Z36 Security Features

 While the Z36 has extensive storage capabilities, it protects your data and files with Canon's advanced security features:

Secure Communication

  • 802.1x Authentication
  • SNMPv3
  • IPSec

Canon imagePROGRAF TZ-30000 MFP Z36 Functionality Restrictions

  • Panel Lock by Remote UI
  • Remote UI Multilevel
  • Hide IP From Panel
  • Panel Access Control
  • Job Storage

Canon imagePROGRAF TZ-30000 MFP Z36 Secure Storage

  • Self-Encrypting Hard Disk
  • Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)

The following functions can be disabled in administrator mode:

  • Direct USB Thumb Drive Printing
  • Internet Connection
  • FTP and Telnet communication protocols
  • Job Log Look-up


Canon imagePROGRAF TZ-30000 MFP Z36 Scanner

The Z36 features scanning speeds up to 13" per second in monochrome and 6" per second in color, and can scan up to 1.0 mm thick documents. With the face-up, front-loading and straight paper path design, it's easier than ever to operate and to collect large batch jobs. Managed by the AIO controller, the Z36 can receive files via USB and through a network with an Ethernet card. The user will always be up to date on maintenance statuses, including ink levels, at any time.

Canon imagePROGRAF TZ-30000 MFP Z36 SmartWorks MFP Software

The MFP Z36 features innovative scanning capabilities, thanks to the SmartWorks MFP software. Canon's dedication to performance-enhancing technology is visible in the consistently precise results with drawings, maps and text. The MFP software features the ability to scan up to 315" for PDF and JPEG files, and 598" for TIFF files. Add customized presets to easily access your most frequently used settings to speed up those high-volume batch jobs.

Canon imagePROGRAF TZ-30000 MFP Z36 Print Head PF-06

 The PF-06 has 6 channels and 15,360 total nozzles to enable faster prints, without compromising accuracy. This print head showcases Canon technology, outputting 5 picoliter ink droplets for lines as thin as 0.02 mm and accurate up to +/-0.10%.

View the Canon Plotter Printers Guide.

Shop Canon Plotters online at WAB Paper Supply for all your business printing solutions.

Canon imagePROGRAF TZ-30000 MFP Z36 Specs


Printer Type

  • 5-color 36-inch printer

Number of Nozzles

  • Number of Nozzles Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

Print Resolution (up to)

  • 2,400 x 1,200 dpi (max)

OS Compatibility

  • Windows® 7, 8.1, 10 (32/64bit)
  • Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
  • Macintosh® (OSX 10.12.6 and later)

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 330ml or 770ml per color

Ink Type

  • Pigment Ink

Color Set

  • Dye: Cyan, Magenta, Yellow, Black
  • Pigment: Matte Black

Buffer RAM

  • 128 GB (Virtual)
  • 2 GB (Physical)

Media Width

  • Cut Sheet: 8"- 36"
  • Roll Feed: 8" - 36"

Media Thickness

  • 0.07-0.8mm (2.8-31.4mil)

Maximum Roll Print Length

  • Roll Feed: 59'

Maximum Media Roll Diameter

  • 6.9"

Borderless Printing Width

  • All sizes

Paper Feed Method

  • Roll Feed: Two Roll, Front-loading
  • Cut Sheet: Front-loading


  • SGRaster, HPGL/2, HP-RTL, PDF, JPEG

Noise Level Approx

  • Operation: 52 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 7.0 Bels or less

Physical Dimensions

  • 47" x 6" x 38" (Main unit, paper output support, top output guide)


  • Approximately 456 lbs

Power Source

  • AC-100-240V (50-60Hz)

Power Consumption

  • Maximum: 157W or less
  • Standby: 2.0W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-replaceable items

  • Print Head: PF-06
  • Maintenance Cartridge: MC-30
  • Ink Tanks: PFI-340/PFI-740

Software Available

  • Accounting Manager
  • Canon Print Service
  • Device Management Console
  • Direct Print Plus
  • Free Layout Plus
  • Canon Printer Driver
  • Media Configuration Tool
  • PosterArtist Lite for Windows
  • Optimized Driver for AutoCAD
  • CPP Publisher Select
  • CPP Driver Select


Scanner Type

  • Contact Image Sensor (CIS) technology
Scan Accuracy
  • +/- 0.1%
  • 13 ips monochrome
  • 6 ips color
Optical Resolutions
  • 1200 dpi (Adjustable from 100 dpi to 2400 dpi)
Maximum Resolutions
  • 9600 dpi interpolated
Maximum Document Size
  • Width: 38" document, 36" image
  • Length: 315" JPG or PDF, 598" TIFF
  • 0.04" (1 mm)
Standard Interface
  • USB 3.0
